介绍
In modern industrial systems, the motor housing is more than just a structural component—it is critical for:
- Structural support
- Heat dissipation
- Sealing performance
At 快速高效, we specialize in precision CNC machining of aluminum motor housings, helping manufacturers in 无人机, new energy systems, and automation equipment achieve stable performance and long service life.
Key Challenges in Motor Housing Machining
Motor housings often involve:
- Thin-wall structures (<1 毫米)
- High thermal management requirements
- Tight cylindricity and tolerance control
- Complex heat dissipation fins
👉 These factors make machining highly challenging.
1. Thin-Wall Deformation Control
Problem
During high-speed machining:
- Residual stress release
- Uneven clamping force
👉 Causes:
- Ovality issues
- Surface deformation
- Assembly failure with stator
Our Solution: Segmented Stress Relief Process
At 快速高效, we apply:
- Rough machining with allowance
- Natural or artificial aging
- Finish machining
Advanced Fixturing
- Vacuum fixtures
- Custom soft jaws
👉 Result:
- Cylindricity controlled within 0.01 毫米
- Stable stator press-fit
2. Heat Dissipation Fin Machining Optimization

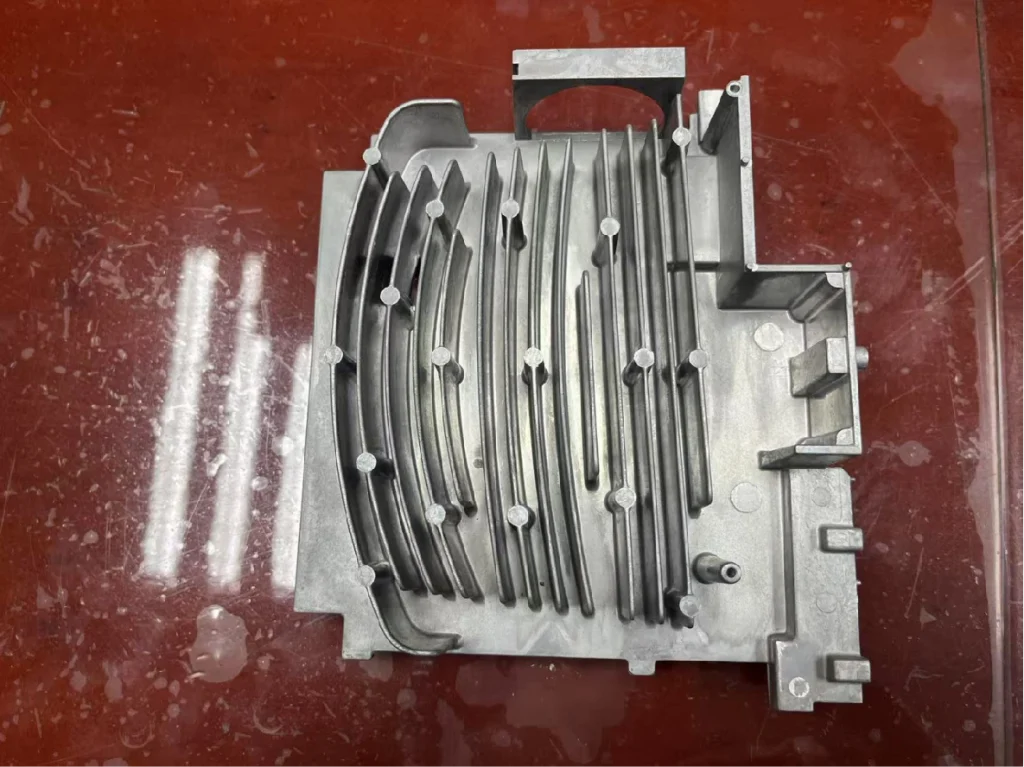

Motor housings rely on cooling fins for thermal performance.
Common Issues
- Tool deflection
- Inconsistent fin thickness
- Fin breakage
Our Strategy
- Optimized toolpaths
- Trochoidal milling + contour machining
- High-speed, low radial cutting
Advanced Capability
- 3+2 轴加工
- High-rigidity tooling
👉 Result:
- Stable fin structure
- +15% machining efficiency
3. 材料 & Anodizing Stability
Problem
7075 aluminum often shows:
- Color variation
- Surface blotches after anodizing
Root Cause
- Material inconsistency
- Internal structure variation
Our Solution
- Certified raw material sourcing
- Pre-production anodizing testing
- Strict process control
👉 Ensures uniform appearance and stable quality
4. 精确 & Sealing Performance
For applications like water-cooled motors:
- Sealing grooves require extreme precision
- Surface finish is critical
Our Capability
- 表面粗糙度: 拉≤ 0.4 μm
- Ultra-precision milling
👉 Ensures reliable O-ring sealing
5. Quality Control System
Inspection Tools
- CMM (Coordinate Measuring Machine)
- Cylindricity tester
Process Control
- First article inspection
- In-process inspection (every 2 小时)
- Final inspection
👉 Ensures full compliance with IATF 16949 standards
6. Flexible Production Capability
Motor housing projects often require:
- 快速原型制作
- Scalable mass production
Our Capacity
- Prototype lead time: 3–7 days
- Urgent projects: as fast as 24 小时 (evaluation-based)
- 量产: scalable to high volume
7. DFM Support for Cost Optimization
At 快速高效, we provide full 设计可制造性 (直接制造) support:
- Optimize fillet radii
- Adjust non-critical tolerances
- Reduce machining complexity
👉 Helps reduce cost by 10–20%
8. 包装 & Delivery Protection
To prevent damage during shipping:
- Ultrasonic cleaning
- Custom blister trays / EPE protection
👉 Ensures zero damage in international delivery
为什么选择Rapideff
- Expertise in thin-wall precision machining
- Strong thermal and structural optimization capability
- Stable anodizing quality
- Scalable production capacity
- Engineering-driven DFM support
结论
CNC machining of motor housings is a complex integration of:
- Precision engineering
- Thermal optimization
- 过程控制
At 快速高效, we deliver not just parts—but reliable performance and long-term value.
