Fazit zuerst
CNC machining tolerance depends on material, feature type, part geometry, fixturing, Schneidhitze, machine condition, Werkzeugverschleiß, and inspection method. For general CNC machined metal parts, common standard tolerances are often around ±0.05–0.13 mm, depending on supplier, drawing requirements, and feature complexity. For plastics, tolerances are often looser because thermal expansion, moisture absorption, and clamping deformation can affect final dimensions.
Tighter tolerances such as ±0,01 mm oder ±0,005 mm are possible, but they should not be treated as default tolerances for every CNC part. They are usually realistic only for selected critical features when the design, Material, fixture, toolpath, machine condition, and inspection method all support the requirement.
This CNC machining tolerance chart is a practical engineering reference. It does not replace drawing review or DFM analysis, but it helps designers, buyers, and engineers understand what tolerance levels are realistic for different materials, Prozesse, and feature types.
What This CNC Machining Tolerance Chart Means
A tolerance chart should not be read as a universal guarantee. A number such as ±0,005 mm may be achievable on a short precision bore, a bearing seat, or a controlled mating feature, but it may be unrealistic across a long thin-wall part, a large flat surface, or a soft plastic component.
In real CNC machining, tolerance capability is affected by:
- Material stability and internal residual stress
- Part size and overall dimensions
- Wall thickness and structural rigidity
- Cutting heat and coolant application
- Tool deflection and spindle runout
- Fixture design and clamping pressure
- Measurement and inspection methods
- Workshop temperature and part stabilization
This is why a good tolerance strategy does not apply tight tolerances everywhere. It applies them only where function requires them.

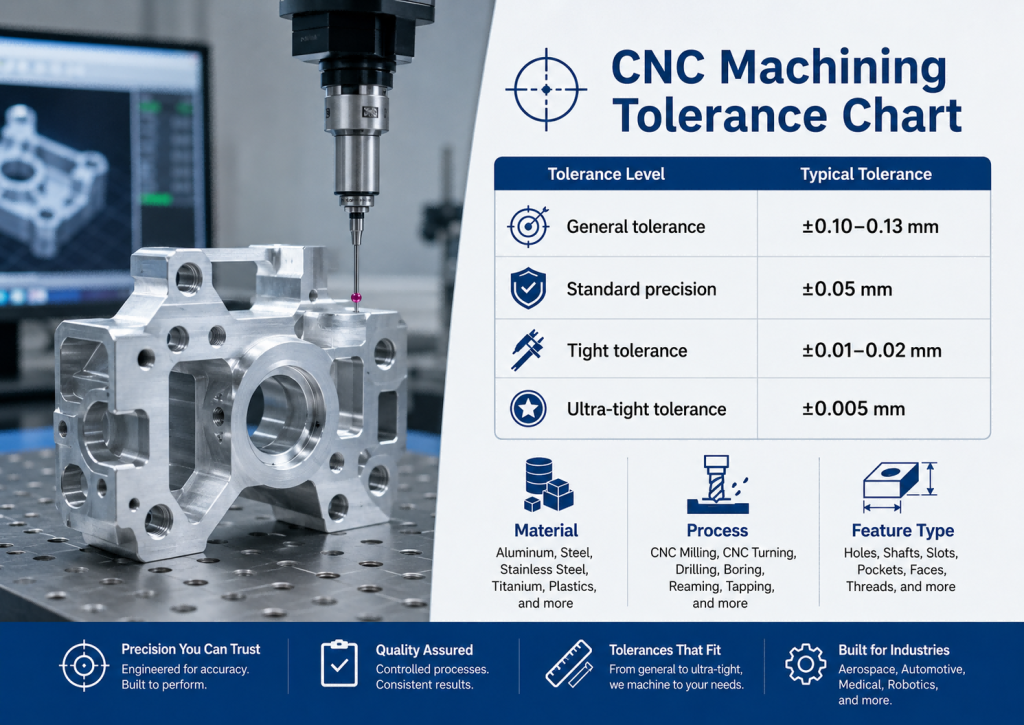

Quick CNC Machining Tolerance Chart
The table below gives a practical starting point for CNC tolerance planning. It combines common industry expectations with real machining risk factors.
| Toleranzniveau | Metric Range | Inch Range | Typical Use |
|---|---|---|---|
| Allgemeine Toleranz | ±0.10–0.13 mm | ±0.004–0.005 in | Non-critical CNC metal parts |
| Standard precision | ±0,05 mm | ±0.002 in | Functional features and common machined surfaces |
| Tight tolerance | ±0.01–0.02 mm | ±0.0004–0.0008 in | Bearing seats, precision holes, mating features |
| Ultra-tight tolerance | ±0,005 mm | ±0.0002 in | Selected critical features only |
| Plastic CNC tolerance | ±0.05–0.15 mm | ±0.002–0.006 in | Depends strongly on plastic type and geometry |
Many online manufacturing platforms treat ±0.005 in as a common local CNC tolerance for metals, while plastics often require wider tolerance windows. Some precision CNC services can quote tighter values, but these typically depend on 2D drawing review, GD&T requirements, inspection methods, and engineering approval.
ISO 2768 General Tolerance Reference
ISO 2768 is commonly used for general tolerances when individual dimensions do not have specific tolerance callouts. It is useful for drawing simplification, but it should not be confused with guaranteed CNC shop capability.
| Nominal Length Range | ISO 2768 Fine | ISO 2768 Medium |
|---|---|---|
| 0.5–3 mm | ±0,05 mm | ±0,10 mm |
| 3–6 mm | ±0,05 mm | ±0,10 mm |
| 6–30 mm | ±0,10 mm | ±0,20 mm |
| 30–120 mm | ±0,15 mm | ±0,30 mm |
| 120–400 mm | ±0,20 mm | ±0,50 mm |
| 400–1000 mm | ±0,30 mm | ±0.80 mm |
| 1000–2000 mm | ±0,50 mm | ±1.20 mm |
ISO 2768 is a general tolerance reference for dimensions without individual tolerance indications. If a critical feature needs tighter control, it should be clearly specified on the drawing with appropriate tolerance, fit, or GD&T callouts.
Practical Tolerance Reference by Material
Different materials behave differently during machining. A stable aluminum part and a soft PTFE part should not be treated with the same tolerance expectation, even if they are produced on the same CNC machining center.
| Material | Practical CNC Tolerance Range | Tight Tolerance Risk | Engineering Note |
|---|---|---|---|
| 6061 Aluminium | ±0.05–0.10 mm | Niedrig | Stable, leicht zu bearbeiten, good default choice |
| 7075 Aluminium | ±0.05–0.10 mm | Medium | Stronger than 6061 but higher cutting stress |
| 5052 Aluminium | ±0.05–0.10 mm | Medium | Gute Korrosionsbeständigkeit, lower strength |
| Edelstahl | ±0.05–0.10 mm | Medium | Work hardening and heat can affect accuracy |
| Tool Steel / Hardened Steel | ±0.05–0.10 mm | Medium to high | Tool wear and heat control matter |
| Titan | ±0.05–0.15 mm | Hoch | Poor heat dissipation and tool wear risk |
| Inconel | ±0.05–0.15 mm | Hoch | Work hardening and heat resistance increase cost |
| POM / Delrin | ±0.05–0.10 mm | Medium | Stable among plastics, good for precision parts |
| SPÄHEN | ±0.02–0.10 mm | Medium | Stable but expensive; process control matters |
| Ptfe | ±0.10 mm or looser | Hoch | Soft and easily deformed under clamping |
| Nylon | ±0.10 mm or looser | Hoch | Moisture absorption can change final dimensions |
These values should be used as a practical engineering reference, not as absolute standards. Real tolerance depends on drawing requirements, feature type, part size, Materialcharge, fixture design, post-processing, and inspection method.
Coating Note for Aluminum Components
For aluminum parts that require Type III hard anodizing, tolerance planning must account for coating thickness and dimensional change after finishing. Hard anodized layers can reach around 25–50 μm depending on specification and process, and only part of that thickness grows outward from the original surface.
Bearing seats, sliding fits, Gewindefunktionen, Dichtflächen, and press-fit areas may require machining offset, masking, post-finishing reaming, or a clear coating allowance on the drawing.
This is especially important for 6061 Und 7075 aluminum components where the final functional fit is measured after anodizing, not before finishing.
Tolerance by Feature Type
A tolerance callout should be evaluated by feature type. Some features are naturally easier to control, while others are sensitive to tool deflection, Spanabfuhr, Spannen, or stress release.
| Feature Type | Typical Difficulty | Warum es wichtig ist |
|---|---|---|
| External profile | Easier | Good tool access and easy inspection |
| Simple holes | Medium | Drill runout and tool wear affect size |
| Reamed holes | Easier to control | Reaming improves diameter consistency |
| Tiefe Löcher | Harder | Deep holes with L/D > 5 increase runout, chip packing, taper, and diameter variation risk. Gun drilling, peck cycles, langweilig, or reaming may be needed for tighter control. |
| Thin walls | Harder | Clamping and residual stress cause movement |
| Bearing seats | Harder | Roundness, concentricity, and fit matter |
| Flatness surfaces | Harder | Fixturing and material stress affect flatness |
| Threaded holes | Medium | Thread depth and fit class matter |
| Long shafts | Harder | Deflection and thermal growth affect accuracy |
| Large plates | Harder | Flatness can change after material removal |
For tight assemblies, feature tolerance should also be checked together with CNC machining tolerance stack-up. A single dimension may look acceptable, but several small deviations can accumulate and cause assembly failure.

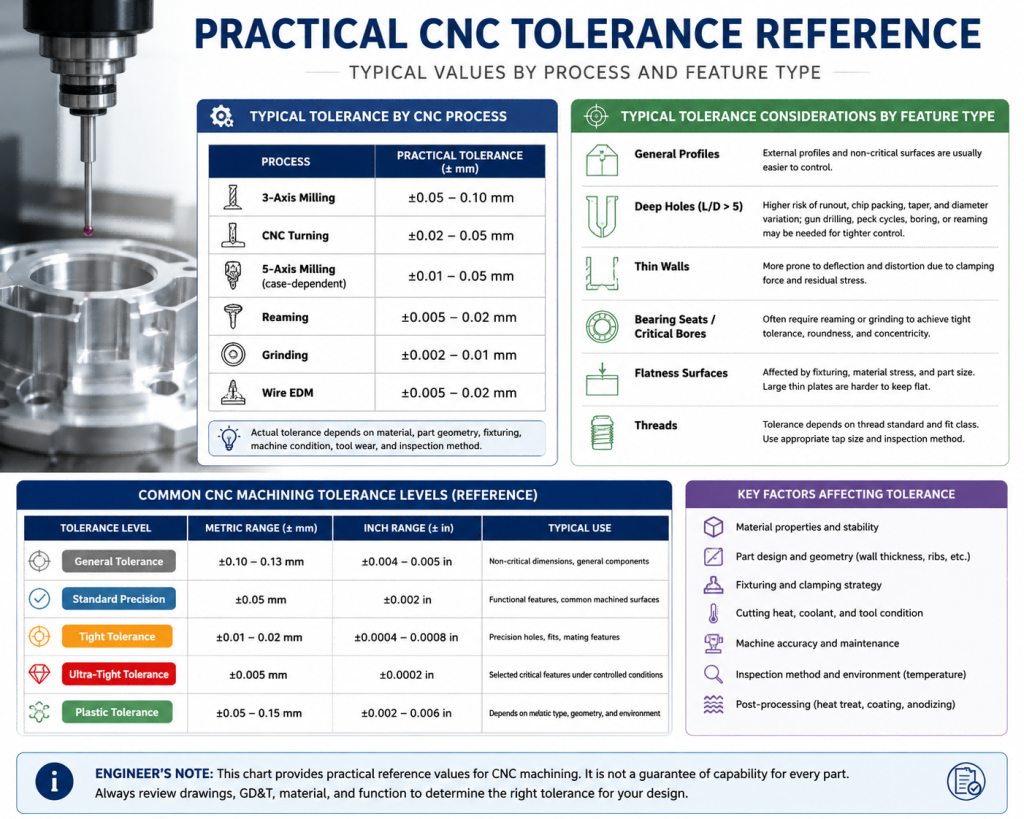

Tolerance by CNC Process
Different CNC operations create different tolerance risks. Mahlen, drehen, langweilig, Reihenfolge, and grinding should not be treated as identical processes.
| CNC Process | Practical Tolerance Expectation | Notizen |
|---|---|---|
| CNC-Fräsen | ±0.05–0.10 mm | Good for general prismatic parts |
| CNC drehen sich | ±0.02–0.05 mm | Good for round parts and shafts |
| Precision boring | ±0.01–0.02 mm | Useful for bearing seats and accurate holes |
| Reiben | ±0.005–0.02 mm | Good for controlled hole diameter |
| Grinding | ±0.002–0.01 mm | Used for very tight surfaces and hardened parts |
| Drahterodieren | ±0.005–0.02 mm | Good for hard materials and precise profiles |
| 5-Achsbearbeitung | Case-dependent | Reduces setups but still depends on fixture and inspection |
The process does not guarantee the tolerance by itself. Zum Beispiel, 5-axis machining can reduce setup error and improve access to complex features, but thin walls, long tool reach, unstable clamping, and poor datum strategy can still create dimensional problems.
When ±0.005 mm Is Realistic
A ±0.005 mm tolerance is not a normal default tolerance for every CNC part. It is realistic only for selected critical features when the design, Material, fixture, toolpath, machine condition, and inspection method all support that requirement.
In practice, ±0.005 mm is more realistic for:
- Short precision holes
- Reamed or precision bored features
- Bearing seats
- Precise alignment dowel holes
- Controlled mating faces with rigid structures
- Klein, symmetrical high-value functional features
- Parts measured under stable temperature conditions
Temperature Control Factor
For ultra-tight tolerances such as ±0,005 mm, temperature control becomes critical. Aluminum expands by about 23 μm per meter for every 1°C temperature rise, so even small temperature differences between machining and inspection can affect the final measurement.
Critical dimensions should be finished and verified under stable temperature conditions, commonly around 20°C when high-precision inspection is required.
It is much harder to hold ±0.005 mm across:
- Long parts
- Thin-wall components
- Soft plastics
- Deep pockets
- Stress-sensitive geometries
- Large flatness surfaces
- Features with poor datum definition
For critical dimensions, the drawing should clearly identify the functional features that truly need tight control. This allows the machining process and inspection plan to focus on the right areas.
Why Tight Tolerance Becomes Expensive
Tight tolerance is not just a number on a drawing. It changes the entire manufacturing process.
A tighter tolerance may require:
- Slower cutting speeds
- Additional semi-finishing passes
- Custom precision fixtures
- Dedicated clamping jigs
- Post-machining stress relief
- Thermal stabilization periods
- Constant tool wear monitoring
- More frequent tool replacement
- CMM inspection reports
- More scrap risk
- Longer lead time
Zum Beispiel, changing a general dimension from ±0,10 mm Zu ±0,01 mm may require more stable fixturing, better tool control, and additional inspection. Changing it again to ±0,005 mm may require full process validation and controlled measurement conditions.
This is why over-tolerancing can increase cost without improving the part’s function.
Hidden Cost of Over-Tolerancing
Over-tolerancing is one of the most common ways to increase CNC machining cost. A drawing that applies ±0,01 mm to every feature may look precise, but most parts only need tight tolerance on functional areas.
Tight tolerances increase:
- Machining time
- Inspection cost
- Fixture complexity
- Werkzeugkleidung
- Scrap risk
- Supplier review time
- Quotation uncertainty
A better strategy is to apply tight tolerance only to critical features such as:
- Bearing seats
- Sealing surfaces
- Alignment holes
- Press-fit features
- Mating interfaces
- Datum-related surfaces
- Features that affect assembly function
For non-critical external profiles, cosmetic surfaces, or clearance features, looser tolerances are often more cost-effective.
For thin-wall or deformation-sensitive parts, review So reduzieren Sie Verformungen bei der CNC-Bearbeitung before locking the final tolerance requirements on your drawing.
Material Movement and Deformation Risk
Many tolerance problems are not caused by machine inaccuracy alone. They are caused by material movement.
Common causes include:
- Internal stress release after roughing
- Uneven material removal
- Over-clamping
- Thin-wall vibration
- Thermal expansion
- Tool pressure
- Poor datum selection
- Measuring the part too soon after machining
This is why thin-wall parts, Kunststoffe, Titan, Edelstahl, and Inconel often require more careful process planning than simple aluminum blocks.
Machine condition and tool wear also affect final accuracy. For a broader explanation, Sehen Sie sich unseren Leitfaden an CNC machining accuracy factors.
Inspection Method Matters
A tolerance is only meaningful if it can be measured reliably.
For simple features, calipers or micrometers may be enough. For complex geometry, tight GD&T, true position, flatness, Rundheit, or concentricity, a CMM is often required.
| Inspection Method | Am besten für | Limitation |
|---|---|---|
| Caliper | General external dimensions | Not ideal for tight tolerance |
| Micrometer | Shafts, Dicke, small precision features | Limited geometry access |
| Bore gauge | Hole diameter and roundness checks | Requires setup and master reference |
| Height gauge | Step heights and simple datums | Less suitable for complex 3D geometry |
| KMG-Inspektion | GD&T, true position, flatness, Komplexe Teile | Higher inspection setup time |
| Optical measurement | Small features and non-contact inspection | Depends on surface reflectivity and lighting |
For critical CNC parts, buyers should ask how the supplier verifies the dimension, not just whether the machine can cut it. Professional CMM inspection for CNC machined parts is especially important for high-precision aerospace, Automobil, medizinisch, and automation components.
Plastic CNC Tolerance Considerations
Plastic CNC parts often need a different tolerance strategy from metals. Many plastics have higher thermal expansion, lower stiffness, or moisture sensitivity.
Zum Beispiel:
- POM / Delrin is relatively stable and suitable for many precision plastic components.
- SPÄHEN offers better dimensional stability and heat resistance but is expensive.
- Ptfe is soft and can deform under clamping pressure.
- Nylon can absorb moisture, which may shift dimensions after machining.
For a broader comparison, Sehen Sie sich unseren Leitfaden an best plastics for CNC machining. If you are choosing between high-performance plastics, unser PEEK vs POM for CNC machining guide explains the difference between a general precision plastic and a premium engineering plastic.
Anmerkung des Ingenieurs
In our shop, tolerance review starts before machining. We do not treat every dimension equally. Erste, we identify which features control fit, Versiegelung, alignment, rotation, or assembly. Then we evaluate whether the material, Geometrie, fixture, and inspection method can support the requested tolerance.
Zum Beispiel, a ±0.005 mm bearing seat may be realistic if the feature is short, rigid, properly fixtured, and inspected after thermal stabilization. But the same tolerance across a long thin-wall aluminum housing or a PTFE part may be impractical or unnecessary.
Good tolerance control is not about promising the smallest number. It is about applying the right tolerance to the right feature.
Practical Tolerance Selection Guide
Use this simple logic when setting CNC tolerances:
- Use ±0,10 mm for non-critical general dimensions.
- Use ±0,05 mm for common functional CNC metal features.
- Use ±0.01–0.02 mm for precision holes, fits, and mating features.
- Use ±0,005 mm only for selected critical features after DFM review.
- Use looser tolerance for plastics unless the material and geometry support tight control.
- Avoid applying tight tolerance to every dimension.
- Define critical datums clearly before adding GD&T.
- Match tolerance requirements with inspection method.
If a tolerance affects assembly, Versiegelung, rotation, gleiten, or bearing fit, it deserves tighter control. If it does not affect function, over-tightening it may only increase cost.
FAQ: CNC Machining Tolerance Chart
What is the standard tolerance for CNC machining?
For many CNC machined metal parts, common standard tolerance is around ±0.05–0.13 mm, depending on supplier, Material, feature type, Geometrie, and drawing requirements.
Can CNC machining hold ±0.005 mm?
Ja, CNC machining can hold ±0,005 mm on selected critical features, but it requires controlled machining, stabile Befestigung, suitable material, tool condition control, and temperature-stabilized inspection. It should not be applied blindly to every feature.
Is ±0.01 mm possible in CNC machining?
Ja, ±0,01 mm is possible for certain CNC features, especially short precision holes, bearing seats, and controlled mating surfaces. Long, thin, soft, or stress-sensitive parts are more difficult.
What tolerance should I use for aluminum CNC parts?
For many aluminum CNC parts, ±0,05 mm is a practical starting point for functional features. Tighter tolerances may be possible depending on geometry, Spannen, toolpath, and post-processing coating requirements.
What tolerance should I use for plastic CNC parts?
Plastic CNC parts often require looser tolerances than metal parts because of thermal expansion, moisture absorption, and clamping deformation. POM and PEEK are generally more stable than PTFE or Nylon.
Why does tight tolerance increase CNC machining cost?
Tight tolerance increases machining time, tool control requirements, fixture complexity, inspection cost, and scrap risk. It should be applied only to functional features that truly require it.
Ist ISO 2768 the same as CNC machining capability?
NEIN. ISO 2768 is a general tolerance reference for drawings without individual tolerance callouts. It does not automatically define what every CNC shop can guarantee for every material and feature.
Abschluss
A CNC machining tolerance chart is useful only when it is used with engineering judgment. General CNC metal parts may use tolerances around ±0.05–0.13 mm, while precision features may require ±0.01–0.02 mm. Ultra-tight tolerances such as ±0,005 mm are possible, but only for selected critical features under controlled conditions.
The right tolerance depends on material, feature type, Geometrie, fixturing, Schneidhitze, tool condition, post-processing, and inspection method. Instead of applying tight tolerances everywhere, the better approach is to identify which features truly affect function and apply precision where it matters.
Bei RapidEfficient, we help customers review drawings, identify tolerance risks, and choose practical machining and inspection strategies before production. Send us your 2D drawing or 3D model, and our engineers can help evaluate whether your tolerance requirements are realistic, kostengünstig, and production-ready.
