Conclusion First (What We Achieved)
Flatness is the most critical factor in heat sink machining, directly affecting thermal contact resistance.
In this high-performance cooling project, we successfully delivered:
- Flatness: ≤0.02 mm across the base
- Surface Roughness (Ra): 0.8 μm
- Thermal Contact Stability: Improved by ~18%
- Final Pass Rate: 100%
👉 The key was controlling deformation and minimizing thermal contact resistance.
📊 Standard vs Precision Machining
| Feature | Standard Shop | Rapidefficient | Value |
|---|---|---|---|
| Flatness | 0.05–0.08 mm ❌ | ≤0.02 mm ✅ | Improved thermal transfer |
| Surface Finish | Ra 1.6 μm | Ra 0.8 μm | Better contact area |
| Fin Quality | Visible chatter | Chatter-free | Stable airflow |
| Clamping | Rigid clamping | Vacuum / soft support | No deformation |
| Rejection Rate | 25% ❌ | 0% ✅ | Consistent supply |
Project Background
A power electronics client required high-precision aluminum heat sinks for a high-density power module.
Their previous supplier struggled with:
- Base surface warping
- Poor thermal contact
- Inconsistent anodizing
👉 Result:
- Overheating risks
- Reduced cooling efficiency
- Assembly instability

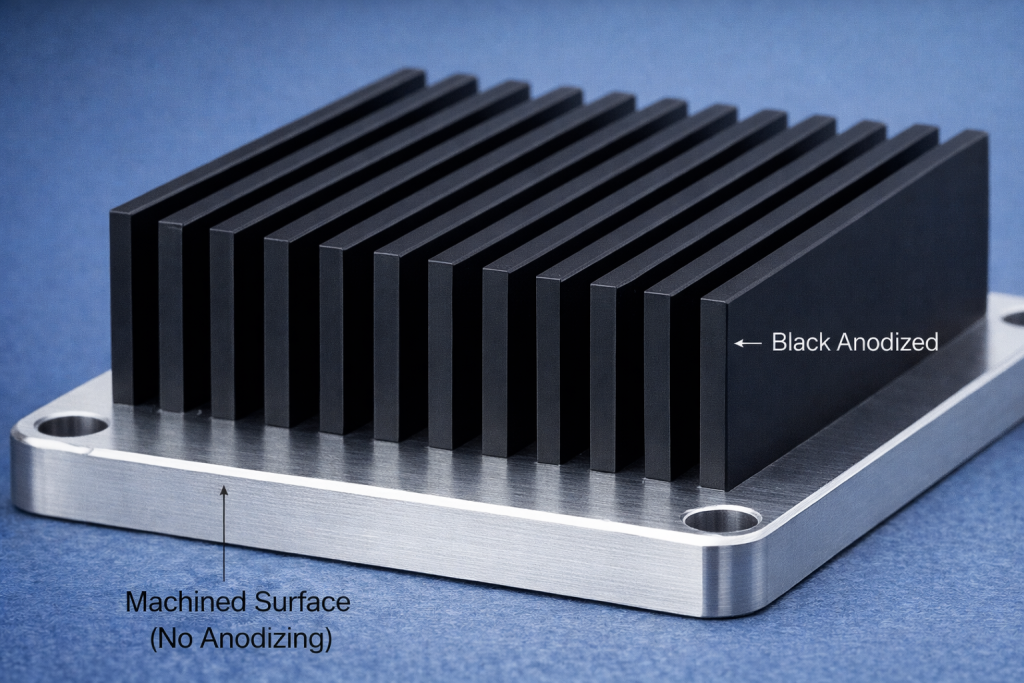

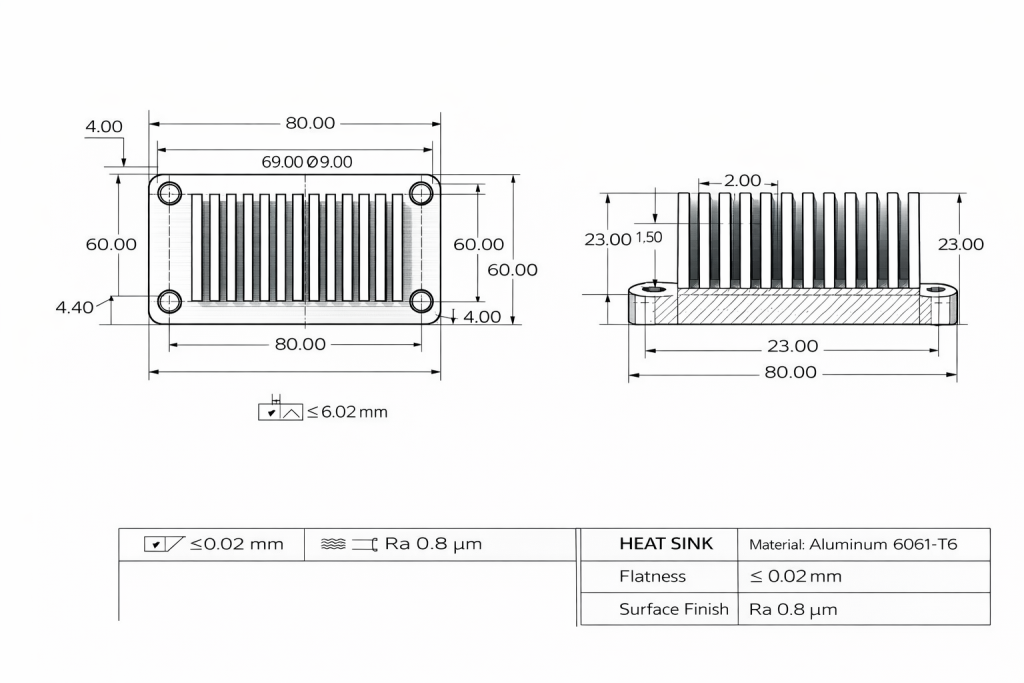

Part Specifications
- Material: Aluminum 6061-T6
- Structure: Multi-fin heat sink
- Flatness requirement: ≤0.02 mm
- Surface finish: Black anodized
- Application: Power electronics cooling
Key Engineering Challenges
1. Base Flatness and Thermal Contact Resistance
The base must perfectly contact the heat source.
👉 Engineering Insight:
Even a microscopic air gap between the heat sink and the heat source acts as a thermal insulator.
By reducing flatness from 0.08 mm to ≤0.02 mm, we significantly minimize thermal contact resistance, allowing more efficient heat transfer and higher power density.
👉 This directly reduces operating temperature and improves long-term reliability of the power module.
2. Thin Fin Stability
- Fin thickness: 1.0–1.5 mm
- High aspect ratio → prone to vibration
👉 Leads to:
- Tool chatter
- Surface defects
- Reduced airflow performance
Why Previous Supplier Failed
The previous supplier used:
- Standard rigid clamping
- Aggressive roughing
- No stress control
👉 Result:
- Base deformation
- Unstable flatness
- High rejection rate
Our Engineering Solution
1. Advanced Stress-Relief Strategy
To ensure dimensional stability, we applied:
- Controlled rough machining
- 24-hour natural aging (stress release)
- Precision finishing under stable conditions
👉 Engineer’s Note:
Without proper stress relief, thin aluminum heat sink bases tend to warp after machining.
👉 Similar deformation control strategies are used in
CNC motor housing machining case study
2. Optimized Fixturing
- Full-surface vacuum support
- Controlled clamping force
- No point pressure
👉 Prevents deformation during machining
3. Precision Surface Finishing
- Low-force finishing passes
- Stable tool engagement
👉 Achieves Ra 0.8 μm for maximum contact
4. Fin Machining Optimization
- High-speed cutting
- Reduced tool engagement
- Smooth toolpaths
👉 Eliminates vibration and chatter
5. Anodizing Consistency Control
- Optimized pre-treatment
- Controlled anodizing process
👉 Ensures uniform surface finish across complex geometry
Final Results
After process optimization:
- Flatness ≤0.02 mm
- Thermal performance improved (~18%)
- 100% pass rate
- Stable anodized surface
👉 This allowed the client to stabilize product performance and reduce field failure risks.
Key Engineering Insight
Heat sink machining is not just about geometry —
it is about controlling surface quality and thermal contact.
Get Expert Help on Heat Sink Machining
If you’re facing:
- Flatness issues
- Thermal inefficiency
- High rejection rates
👉 Send us your CAD file for a DFM review.
Our engineering team will recommend the optimal machining strategy.
FAQ
Why is flatness critical for heat sinks?
Because flatness directly affects thermal interface resistance and heat transfer efficiency.
What aluminum is best for heat sinks?
👉 6061 is most common due to balanced performance and machinability.
How do you prevent fin vibration?
By optimizing toolpaths, cutting parameters, and support structures.
