CNC Machining Materials: Practical Selection Guide

Material selection is not a dropdown menu.

A material that looks suitable on a drawing can still create problems during production. A thin-wall aluminum housing may move after heavy pocketing. Stainless steel may work-harden under the cutting tool. Pure copper may produce rolled burrs and damaged threads. An engineering-plastic component may shift dimension after machining or storage.

Rapid Efficient supports CNC machining for aluminum, stainless steel, steel, copper alloys, brass, engineering plastics, titanium alloys, and other application-specific materials.

Before quotation, the material grade should be reviewed together with:

  • Part geometry
  • Tolerance requirements
  • Threads and holes
  • Surface treatment
  • Inspection requirements
  • Production quantity
  • Operating environment
  • Packaging and delivery conditions

The right material is not simply the strongest or cheapest option. It is the material that provides the best balance of function, manufacturability, inspection stability, cost, and delivery reliability.

Finished CNC machined aluminum, copper, and engineering plastic parts with a thermal imaging instrument application.

Finished CNC machined parts showing aluminum, copper, engineering plastics, and a precision-instrument application.

Start with the Manufacturing Risk, Not Only the Material Name

The first question should not be:

Which material is strongest?

A more useful review starts with the failure mode that must be avoided.

Machinability and Burr-Control Checklist

  • Will a thin wall move after material is removed?
  • Will the material generate long chips, rolled burrs, or built-up edge?
  • Will internal threads remain stable after machining and finishing?
  • Does the part need corrosion resistance, electrical conductivity, thermal performance, or wear resistance?
  • Will anodizing, passivation, plating, or heat treatment affect critical dimensions?
  • Will humidity, storage conditions, or overseas shipping affect the final part condition?
  • Does the drawing require CMM inspection, thread gauges, surface checks, or material certificates?

Material selection should reduce the total manufacturing risk, not only the raw-material cost.


A Practical Material Risk Map

Material FamilyTypical Reason for SelectionCommon Manufacturing ConflictWhat to Confirm Before Quotation
Aluminum AlloysLightweight structure, housings, heat dissipation, anodizingThin-wall deformation, residual stress, anodizing allowanceGrade, temper, stock form, wall thickness, finishing route
Austenitic Stainless SteelCorrosion resistance, clean appearance, humid environmentsWork hardening, tough chips, tool wear, burr controlGrade, surface finish, passivation, tolerance level
17-4PH Stainless SteelHigher strength and hardnessMachining difficulty depends strongly on heat-treatment conditionCondition A, H900, H1025, or other specified condition
Copper and Copper AlloysConductivity, thermal performance, contact surfacesSticky cutting behavior, burrs, oxidation, thread riskExact copper grade, cutting-fluid compatibility, packaging
Carbon and Alloy SteelStrength, rigidity, wear resistanceHardness, coating, heat treatment, dimensional stabilityGrade, hardness condition, coating, post-treatment inspection
Engineering PlasticsInsulation, low friction, weight reduction, chemical resistanceClamping deformation, thermal expansion, moisture sensitivityExact polymer, temperature, humidity, tolerance, inspection timing
Titanium AlloysStrength-to-weight ratio, corrosion resistanceHeat concentration, tool wear, rigid setup requirementsGrade, tolerance, feature complexity, quantity

This table is a starting point. The final grade should always be reviewed against the drawing and operating environment.


Aluminum: Strength Is Only Part of the Decision

Aluminum is widely used for housings, brackets, heat sinks, fixtures, enclosures, automation components, and communication-equipment parts.

Common grades include:

  • 6061 for general-purpose machined components
  • 6063 for extrusion-related and appearance-sensitive applications
  • 6082 for structural applications
  • 7075 for higher-strength components
  • 5052 and 5083 for selected corrosion-resistant applications
  • 2024 for specific strength-driven applications where the finishing route must be reviewed carefully

The hidden issue is often not strength. It is dimensional movement after material removal.

When a housing, plate, or bracket requires heavy pocketing or thin-wall machining, residual stress may be released as the cutting tool removes material. For machined plate applications, a stress-relieved temper such as 6061-T651 under ASTM B209/B209M may help reduce distortion risk. For extruded stock or other material forms, the applicable temper and product standard may differ.

Material condition does not replace a controlled machining plan.

A stable process may still require:

  • Symmetrical material removal
  • Multiple roughing and finishing stages
  • Controlled clamping force
  • Rest periods between machining stages
  • Inspection after stress-relieving operations
  • Finishing allowance for anodizing or coating

For heat-transfer applications, review our guide to the best aluminum for heat dissipation.

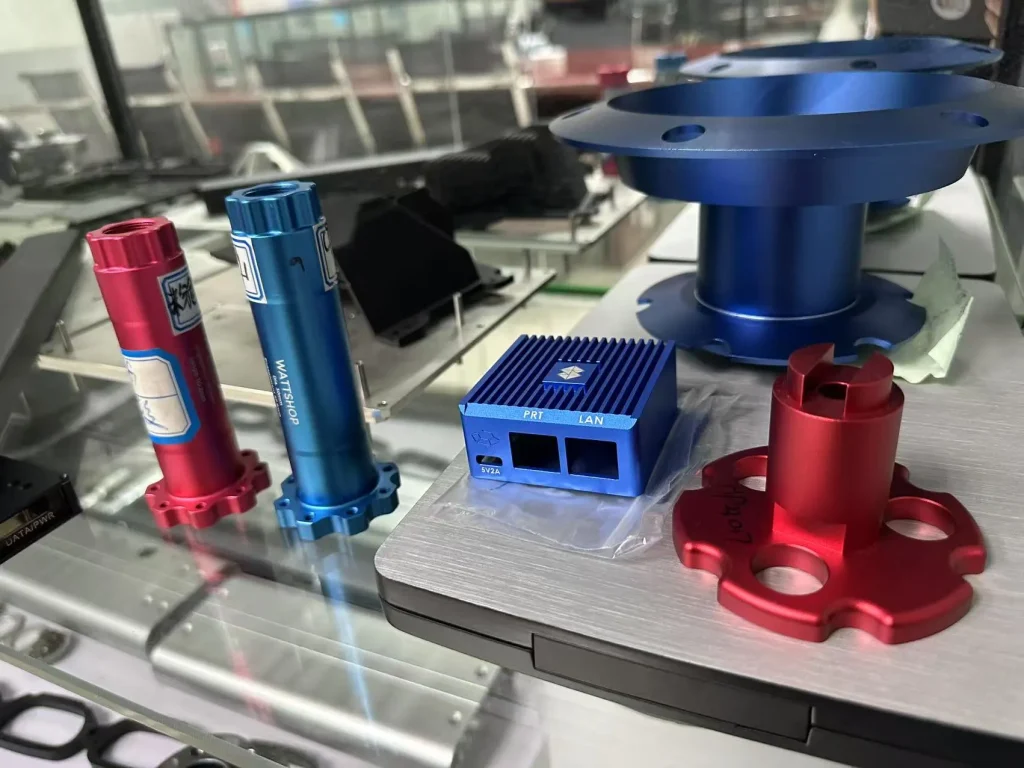

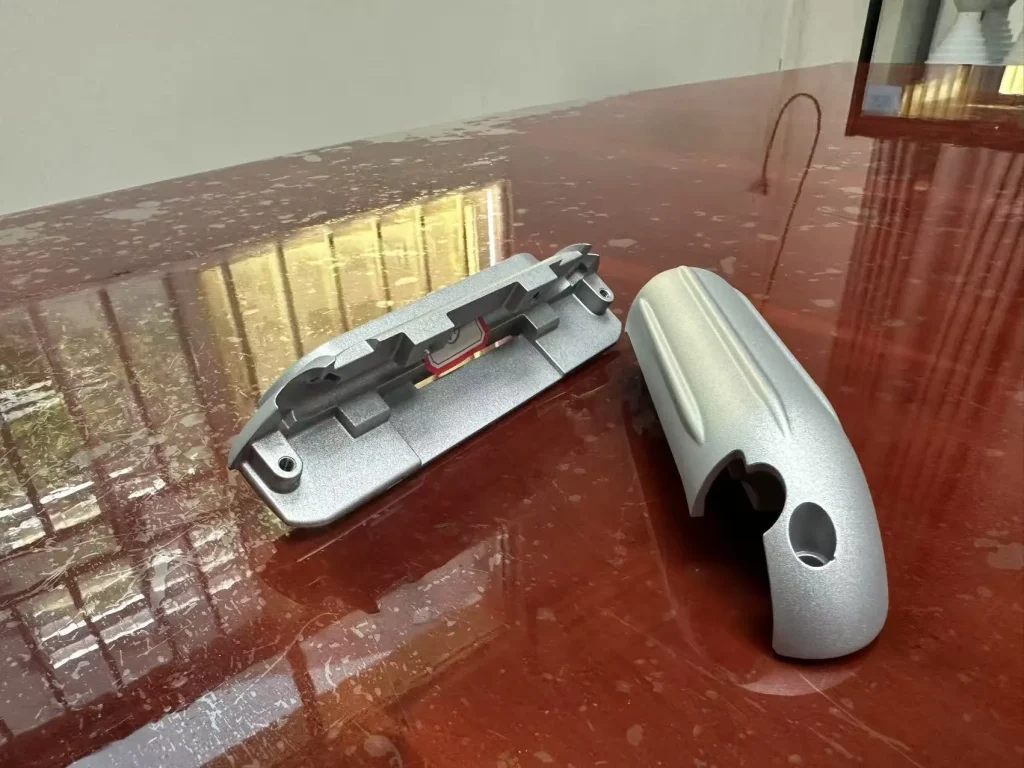

When the drawing includes cosmetic surfaces, bead blasting, polishing, or anodizing, review the surface finish guide for CNC aluminum before finalizing the specification.

Batch of aluminum housings arranged for inspection and downstream surface-finishing review.

Stainless Steel: Confirm the Grade and the Condition

Stainless steel should never be quoted as one generic material.

Austenitic grades such as 304 and 316 / 316L are commonly selected for corrosion resistance, but they can generate tough, stringy chips and rapidly work-harden when the tool rubs instead of cutting cleanly.

Stable machining may require sharp tooling and appropriate chip-breaker geometry to improve chip control and reduce surface damage. For deeper holes, controlled peck-drilling cycles may be considered where chip evacuation and coolant access require them. The drilling strategy should still be selected according to hole depth, tool design, and through-coolant capability.

By contrast, 17-4PH stainless steel is a precipitation-hardening grade. Its machining behavior depends strongly on the heat-treatment condition. In the H900 condition, hardness can reach levels above 40 HRC, which changes the tooling strategy, cutting parameters, inspection plan, and cost.

Common grades include:

  • 303 stainless steel when improved machinability is acceptable for the application
  • 304 stainless steel for general corrosion-resistant parts
  • 316 / 316L stainless steel for more demanding corrosion environments
  • 416 stainless steel for selected machinability-focused applications
  • 17-4PH stainless steel for higher-strength precision components

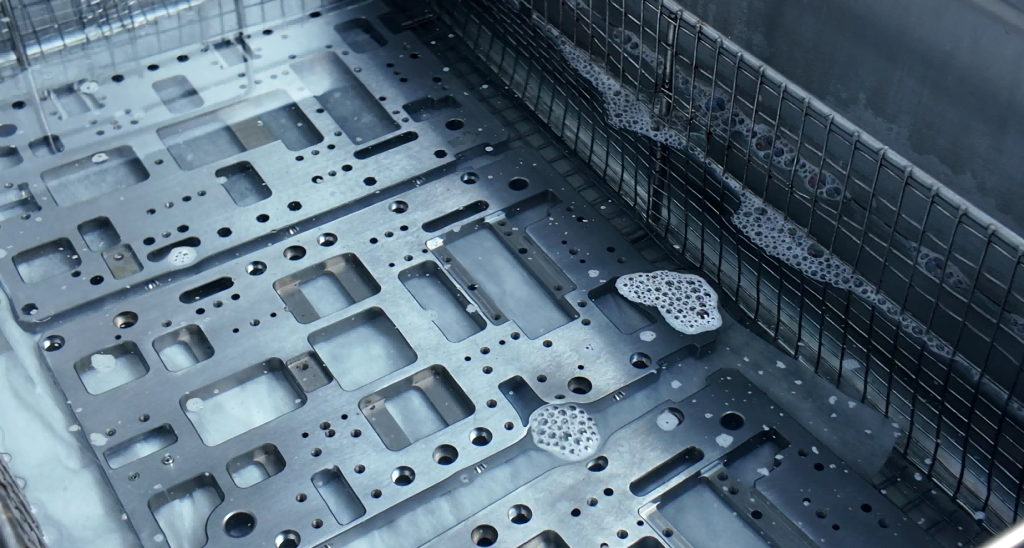

After machining, stainless steel parts may also require cleaning and passivation review. Blind holes, internal threads, trapped chemical residue, and final rinsing should be considered together with the part geometry.

Read our guide to stainless steel passivation for CNC parts.


Copper: Conductivity Creates a Different Machining Problem

Copper is valuable because of its electrical and thermal performance. That does not mean it is easy to machine.

Pure copper and high-conductivity copper alloys can be soft, ductile, sticky, and sensitive to surface handling. Instead of breaking into short, clean chips, the material may smear, drag, and form rolled burrs around holes, slots, contact surfaces, and internal threads.

The exact grade matters:

  • C110 / ETP Copper for conductive applications
  • C101 / OFHC Copper for high-purity requirements
  • C145 Tellurium Copper when improved chip breakability is helpful and the electrical requirement allows the change
  • Brass when machinability matters more than maximum conductivity
  • Bronze for selected wear-related mechanical applications

Before quoting copper parts, confirm:

  • Conductivity requirements
  • Small holes and blind threads
  • Contact surfaces
  • Deburring limits
  • Cutting-fluid compatibility
  • Oxidation protection
  • Clean handling
  • Packaging for overseas shipment

For a deeper breakdown of tooling, burr control, thread risks, cutting-fluid compatibility, and oxidation protection, read our copper CNC machining guide.

Copper fixtures showing curved geometry, mounting features, and application-specific machining requirements.

Carbon Steel, Alloy Steel, and Tool Steel

Steel is commonly used when a component requires strength, rigidity, wear resistance, or heat-treatment options.

The word steel is not a complete material specification.

Common categories include:

  • Low-carbon and medium-carbon steels
  • Free-machining steels
  • Alloy steels such as 4140 and 4340
  • Tool steels such as H13 and D2

Steel machining requirements depend heavily on:

  • Material grade
  • Hardness condition
  • Heat-treatment route
  • Surface coating
  • Dimensional stability after treatment
  • Tool wear
  • Inspection requirements

A drawing that specifies only “steel” can create unnecessary quotation risk. The grade, hardness condition, and post-processing route should be confirmed before production.


Metals and Engineering Plastics Fail in Different Ways

Engineering plastics are not simply easier alternatives to metals.

A plastic component may machine quickly and still fail inspection because of:

  • Clamping deformation
  • Thermal expansion
  • Flatness recovery after machining
  • Moisture absorption
  • Surface scratches
  • Burrs or edge fuzz
  • Inspection timing
  • Storage conditions

Common engineering plastics include:

Engineering PlasticTypical Reason for SelectionMain CNC Machining Concern
POM / AcetalGood dimensional stability, low friction, general precision partsEdge quality, flatness, tolerance review
PEEKHigh-performance applications, temperature and chemical resistanceMaterial cost, machining strategy, tolerance control
PTFELow friction and chemical resistanceSoft behavior, deformation, controlled fixturing
Nylon / PAWear resistance and general mechanical applicationsMoisture absorption and dimensional change
ABSPrototypes and general-purpose plastic partsSurface quality and support strategy
PCTough functional parts and appearance-sensitive componentsStress, scratching, and surface expectations
PPLightweight chemical-resistant componentsFlexible behavior and fixturing stability

Nylon deserves special attention. Polyamide materials generally absorb more moisture than many other engineering plastics, and this may affect final dimensions.

This does not mean every Nylon part must be changed to POM. The correct response is to review:

  • The exact PA grade
  • Operating humidity
  • Storage conditions
  • Required tolerance
  • Whether conditioning is expected
  • Whether POM, PA12, filled Nylon, PEEK, or another material is a better fit

For a broader comparison, see our guide to the best plastics for CNC machining.

Batch of CNC machined engineering plastic components prepared for assembly and inspection.

Batch of engineering-plastic components prepared for downstream assembly and inspection.

Starting-Point Matrix for Application Review

The combinations below are not final engineering specifications. They are practical starting points for RFQ discussion.

ApplicationMaterial Options to Review FirstSurface or Process ReviewMain Question Before Production
EV Motor Housing6061, 6082, or another suitable aluminum alloyAnodizing only when corrosion, wear, insulation, or appearance requires itThermal performance, bore alignment, sealing surfaces, concentricity
Robotics Joint Housing6061 or 7075 depending on load and weight targetAnodizing, coating, or no finish depending on useLoad path, bearing seats, stiffness, repeatability
Medical or Fluid-Handling Valve Component316 / 316L stainless steel or application-specific gradePassivation, polishing, cleaning reviewCorrosion environment, cleanliness, threads, blind holes
Electrical Connector or Conductive FixtureC110, C101, C145, brass, or bronze depending on functionSurface protection and packagingConductivity, burr control, threads, contact surfaces
Thermal Imaging Instrument HousingEngineering plastic, aluminum, or combined structure depending on designAppearance, assembly, insulation, dimensional stabilityWeight, insulation, fit, surface scratches, assembly tolerance
Fishing Reel ComponentAluminum, stainless steel, brass, or engineering plastic depending on functionCorrosion and wear reviewSaltwater exposure, load, friction, surface appearance
Precision Inspection FixtureAluminum, steel, stainless steel, engineering plastic, or combined structureWear surfaces, datum stability, replaceable featuresRepeatability, rigidity, dimensional stability, service life

The best material is the one that balances function, manufacturability, inspection, cost, and delivery reliability.




Thermal imaging instrument assembled with CNC machined engineering plastic housing components.

Thermal imaging instrument assembled with engineering-plastic components for a precision-equipment application.

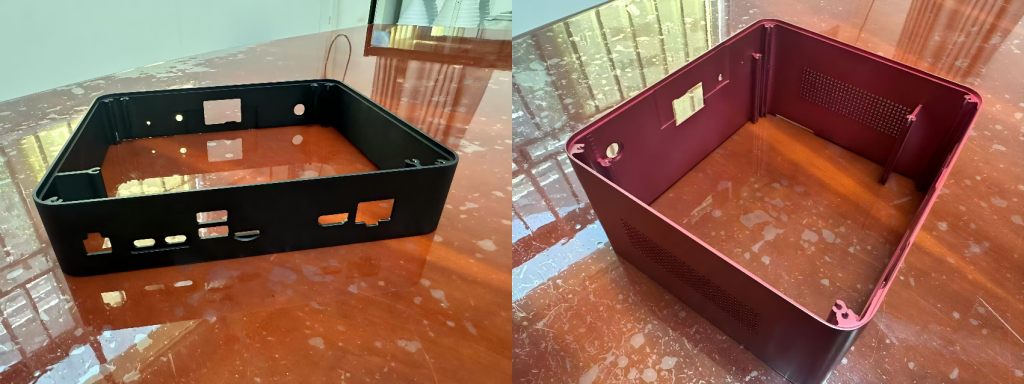

Surface Treatment Cannot Be Decided After Machining

Surface finishing is part of the manufacturing route.

It should be reviewed together with:

  • Material grade
  • Hole size
  • Thread fit
  • Bearing locations
  • Mating surfaces
  • Masking requirements
  • Corrosion environment
  • Wear surfaces
  • Cosmetic expectations
  • Packaging conditions

Available finishing support includes:

  • Anodizing
  • Passivation
  • Polishing
  • Sandblasting / bead blasting
  • Powder coating
  • Painting
  • Plating
  • Laser engraving
  • Heat treatment when required

Hard anodizing should not be treated as an automatic upgrade for every aluminum component. It is useful where wear resistance, abrasion resistance, or another functional requirement justifies it.

Coating thickness, sealing, fit, appearance, and dimensional allowance still need to be confirmed before production.




Tolerances and Inspection Must Follow Material Behavior

A drawing may show the same tolerance for aluminum, stainless steel, copper, and plastic parts, but the manufacturing risk is not the same.

Material behavior affects:

  • Clamping strategy
  • Tool selection
  • Burr formation
  • Heat control
  • Surface finish
  • Dimensional recovery
  • Post-processing allowance
  • Inspection timing
  • Packaging requirements

For practical guidance, review our CNC machining tolerance chart.

Inspection planning may include:

  • Dimensional checks
  • CMM inspection
  • Thread gauges
  • Pin gauges
  • Surface checks
  • Burr inspection
  • Coating review
  • Material certificates when required
  • Packaging verification

Learn more about our quality assurance process.




Material Review Before Quotation

Before sending an RFQ, prepare:

  • 2D drawing
  • 3D CAD file
  • Exact material grade
  • Temper or hardness condition
  • Tolerance requirements
  • Surface-finish notes
  • Quantity
  • Operating environment
  • Critical mating surfaces
  • Thread requirements
  • Inspection-report requirements
  • Packaging requirements

If the exact grade has not yet been selected, include the functional requirement of the part. We can review the machining route, finishing risks, inspection plan, and delivery conditions together.

You can also review our equipment and manufacturing capacity before submitting your project.

CNC machined parts arranged with an engineering drawing for material selection and production review.

Material grade, geometry, tolerances, surface requirements, and inspection needs should be reviewed together before quotation.

Upload Your Drawing for Material Review

Send your 2D drawing, 3D CAD file, material requirement, tolerance notes, surface-finish requirements, and expected quantity.

Our team will review the material choice, machining route, finishing requirements, inspection plan, and delivery conditions before quotation.

Upload Your Drawing
