Thin-wall motor housings are among the most difficult aluminum CNC components to machine consistently.
The challenge is not simply machining outside dimensions. The real difficulty is maintaining:
- bearing bore concentricity
- wall stability after unclamping
- repeatable geometry in production
- vibration-free rotating alignment
在这个项目中, RapidEfficient machined a custom aluminum motor housing with 1.2–1.5 mm wall thickness while achieving ±0.005 mm concentricity on critical rotating features.
For engineers comparing material options first, read our Best Aluminum for Precision Machining Guide

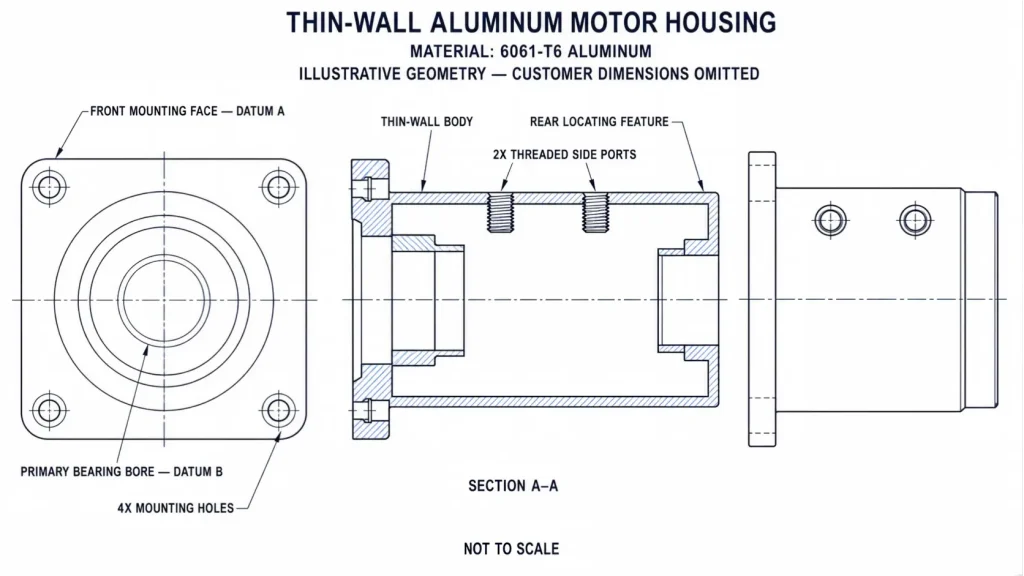

项目要求
The customer required a lightweight housing for a precision drive system.
| 特征 | 要求 |
|---|---|
| 材料 | 6061-T6铝 |
| 壁厚 | 1.2–1.5 毫米 |
| Bearing Bore Tolerance | H7 |
| 同心度 | ±0.005毫米 |
| 表面处理 | 拉 0.8 μm |
| Batch Stability | Required |
The previous supplier could produce prototypes, but failed to maintain geometry consistently in production batches.
Why Thin-Wall Motor Housings Often Fail
Many shops can hold dimensions on a solid billet.
Thin-wall housings are very different.
Common failure points include:
- wall movement during clamping
- residual stress release after rough machining
- bore shift after unclamping
- chatter on weak wall sections
- poor alignment between front and rear bearing seats
This leads to real-world problems such as:
- bearing noise
- rotor vibration
- assembly rejection
- shortened service life
- unstable motor performance
Need tolerance guidance? 阅读我们的 CNC 铝公差指南
Ordinary Process vs Our Process
Typical Low-Control Process
- heavy roughing and finishing in one cycle
- standard vise clamping
- no stress stabilization time
- separate setups for critical bores
- limited inspection after machining
结果:
- bore ovality
- concentricity drift
- wall distortion
- unstable batch consistency
RapidEfficient Controlled Process
- rough machining first
- stress release stabilization
- custom soft-jaw profile fixturing
- one-setup critical bore finishing
- full dimensional and CMM verification
结果:
- stable bore geometry
- controlled wall movement
- repeatable concentricity
- production-ready consistency
Our Machining Strategy
1. Stable Material Selection
We selected certified 6061-T6铝 with excellent machinability and predictable dimensional behavior.
6061 remains one of the best choices for precision housings without the higher cost of 7075.
2. Rough + Rest + Finish Sequence
The housing was rough-machined first, then allowed to stabilize before final finishing.
This reduced dimensional movement caused by internal stress.

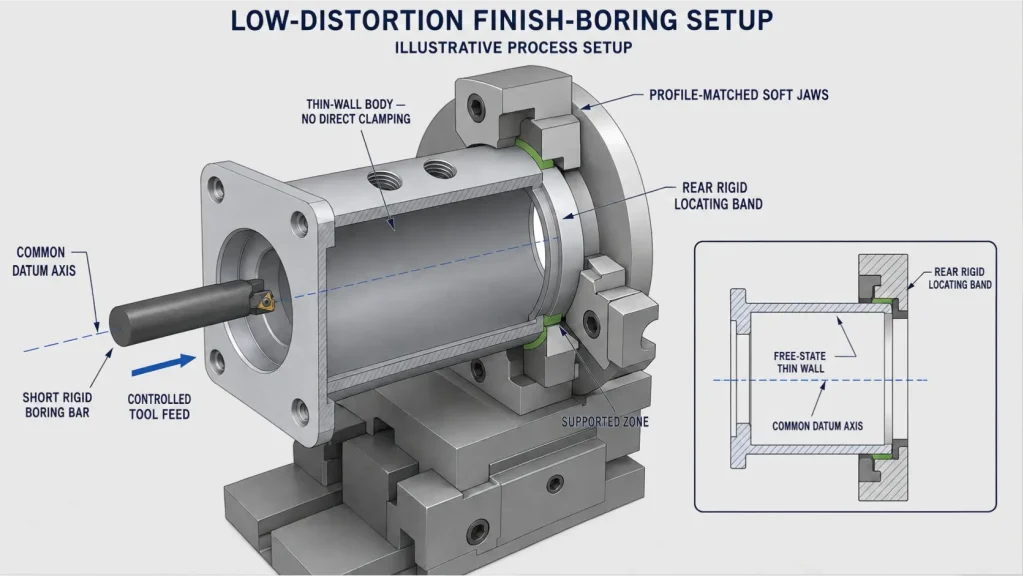

3. Custom Soft-Jaw Fixturing
We machined custom jaws matching the housing profile.
This distributed pressure evenly and protected thin-wall areas during clamping.
4. One-Setup Bore Finishing
Critical bearing bores were finished in one controlled setup to preserve axis alignment.

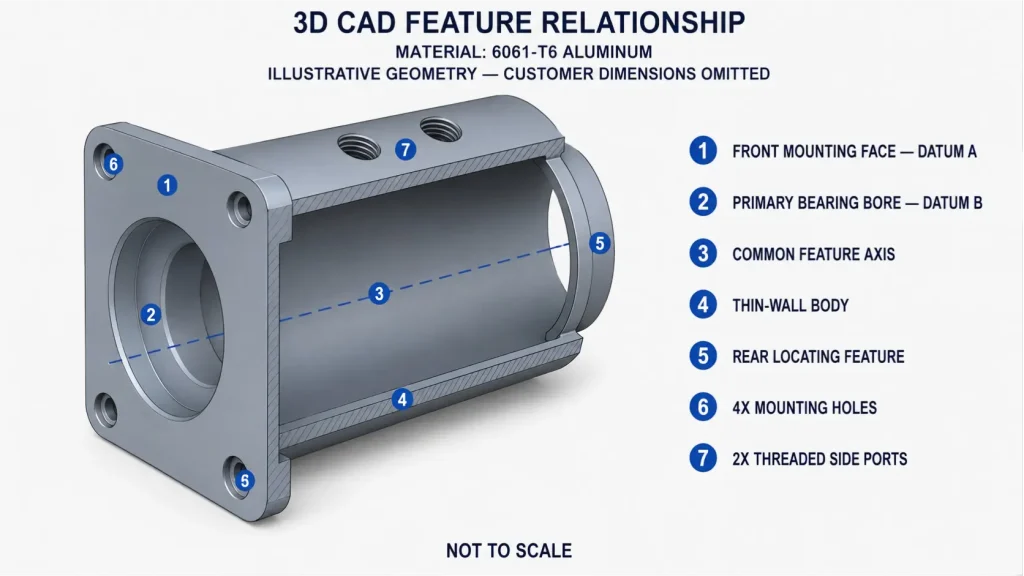

This project also shows why datum control and tolerance stack-up analysis are critical for thin-wall motor housings, especially when bearing bores, sealing faces, and mounting holes must work together.
5. Thermal Awareness During Finishing
Aluminum has a relatively high thermal expansion coefficient:
α≈23.1×10−6/K
Even small temperature changes during machining can influence a thin wall section, so finishing parameters were carefully controlled.

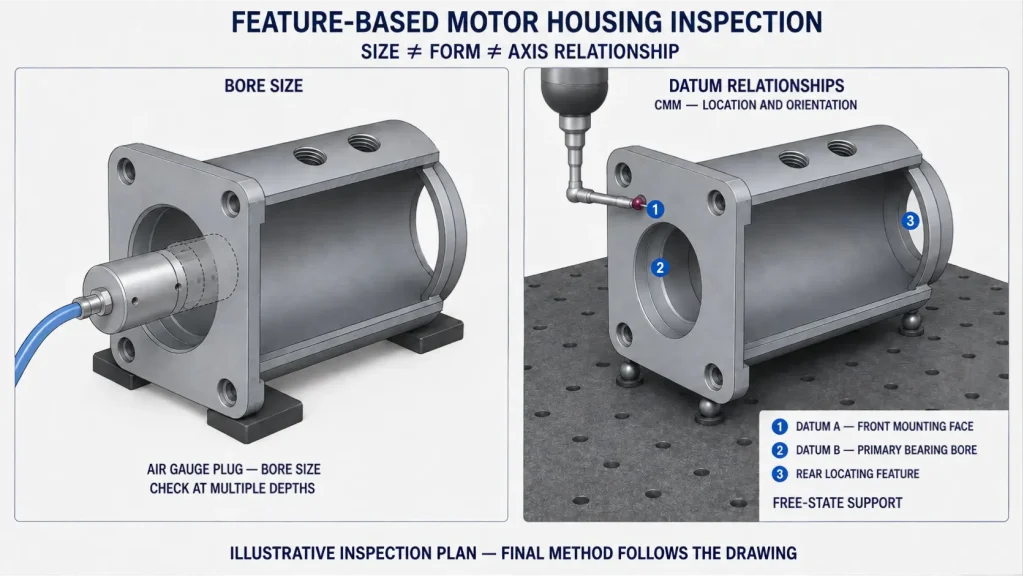

6. Final CMM Verification
All key dimensions and concentricity values were inspected before shipment.
For micron-level machining methods, read our 如何在铝零件中实现 ±0.005mm case study
For thin-wall motor housings, 三坐标检测 is essential to verify bore concentricity, 日期对齐, and final assembly accuracy.
Thin Wall Control: 为什么它很重要
在 1.2–1.5 mm wall thickness, even small cutting forces or fixture imbalance can distort the housing.
That distortion may partially disappear after unclamping, making inspection results inconsistent.
Our process focused on:
- 平衡刀具路径
- light finishing passes
- 支持薄弱区域附近
- controlled cutting heat
- symmetrical material removal
These steps significantly improved repeatability.

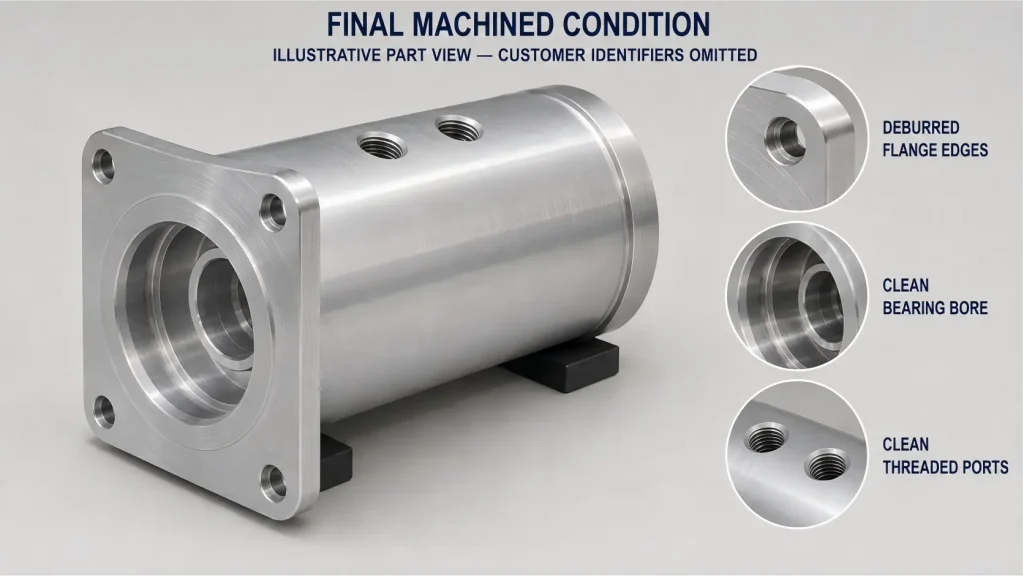

Final Results
| 特征 | Target | Achieved |
|---|---|---|
| 壁厚 | 1.2–1.5 毫米 | 通过 |
| Bearing Bore | H7 | 通过 |
| 同心度 | ±0.005毫米 | ±0.004 mm |
| 表面处理 | 拉 0.8 μm | 拉 0.6 μm |
| Batch Stability | Required | 通过 |
Hidden Cost Buyers Often Ignore
Many buyers compare only unit price.
But poor concentricity creates much larger costs:
- motor noise complaints
- bearing replacement
- failed final assembly
- vibration troubleshooting
- warranty claims
- delayed product launch
The cheapest quote often becomes the most expensive production run.
Need pricing guidance? 阅读我们的 铝加工成本指南
Best Fit Applications
This type of housing is ideal for:
- BLDC motor housings
- servo motor housings
- robotics drive systems
- precision spindle housings
- automated motion-control assemblies
工程师注意事项
For motor housings, geometry matters more than cosmetic appearance.
A clean external finish cannot compensate for a misaligned rotating system.
When bearing bores drift, the motor reveals the truth immediately.
常问问题
Why is concentricity important in motor housings?
Poor concentricity causes vibration, 噪音, and premature bearing wear.
Can thin-wall aluminum housings be machined reliably?
Yes—when fixture design, machining sequence, and inspection control are properly managed.
Why do thin-wall parts deform?
Because clamping force, cutting heat, and internal stress can move weak wall sections.
是 6061 good for motor housings?
是的. It offers an excellent balance of machinability, 力量, 耐腐蚀性, 和成本.
What causes motor housing vibration?
Common causes include poor concentricity, bearing misalignment, 不平衡, and weak assembly control.
How thin can aluminum motor housings be machined?
It depends on geometry and tolerance requirements, 但 1.2 mm walls are achievable with proper process control.
