选择不锈钢饰面不仅仅考虑外观.
适用于 CNC 加工不锈钢零件, the finish can affect corrosion resistance, 表面粗糙度, 打扫, burr visibility, fingerprint marks, 密封, 滑动, 检查, and final customer acceptance.
A drawing note such as “stainless steel, brushed finish” 或者 “passivated after machining” may look simple, but it can change the full production route.
The buyer should not only ask:
Which stainless steel finish looks best?
更好的问题是:
Which finish matches the part function, stainless grade, machined surface condition, corrosion requirement, 检查方法, and final use environment?
This guide compares common stainless steel finishes for CNC machined parts and explains when each one makes sense.

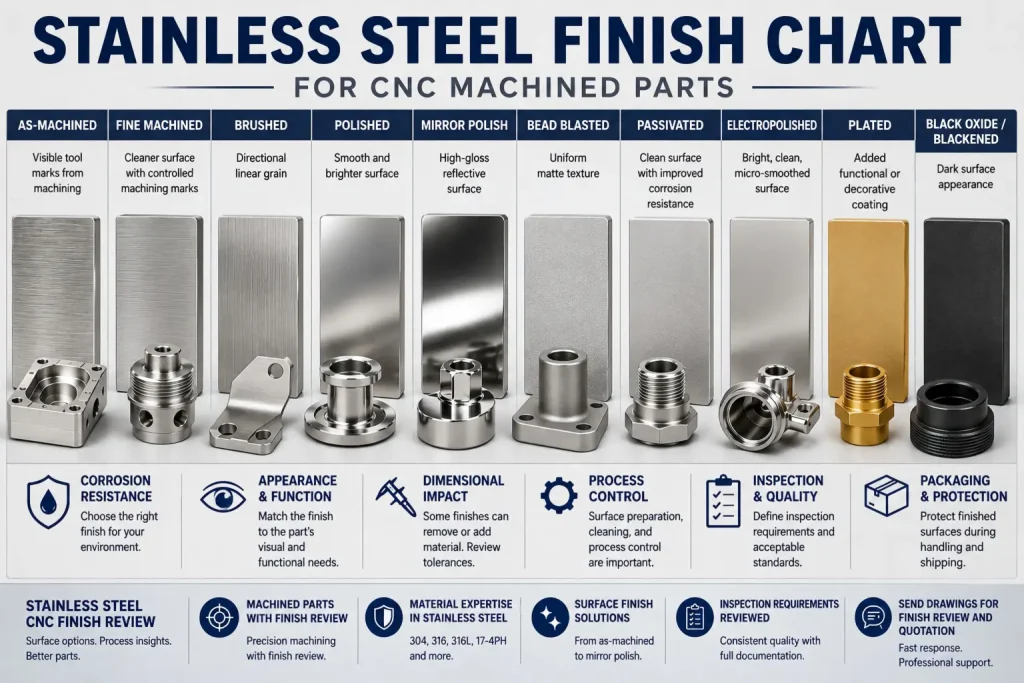

Stainless Steel Finish Chart
The chart below gives a practical starting point for CNC buyers.
| Finish Type | Typical Surface Result | 常用 | Key RFQ Risk |
|---|---|---|---|
| 加工状态 | Visible tool marks depending on cutting strategy | Internal parts, functional blocks, 原型, hidden components | 工具痕迹, 毛刺, and roughness may not meet cosmetic needs |
| Fine machined | Cleaner machined surface with controlled tool paths | 配合面, precision surfaces, functional contact areas | Cost increases if very low roughness is required everywhere |
| 拉丝饰面 | Directional linear grain | 封面, 面板, visible brackets, product housings | Grain direction and visible surface zones must be defined |
| Polished finish | Smoother and brighter surface | Cosmetic parts, 滑动面, cleanable components | Edge rounding, waviness, and uneven brightness |
| Mirror polish | High-gloss reflective surface | Decorative or special visible parts | High labor, difficult consistency, and visible defect risk |
| Bead blasted | Uniform matte texture | Appearance blending, glare reduction, handling marks reduction | Media type, 压力, 掩蔽, and texture consistency |
| Passivated | Similar appearance, cleaner corrosion-resistant surface | 304, 316, 316l, 17-4PH parts needing corrosion resistance | Not a cosmetic finish; cleaning and standard must be confirmed |
| Electropolished | Bright, 干净的, micro-smoothed surface | Fluid, cleanability, medical-style, food-style, and low-contamination parts | 材质等级, 几何学, 引流, and edge condition matter |
| Plated | Added functional or decorative coating | Wear, 电导率, 外貌, 腐蚀保护 | 涂层厚度, adhesion, 掩蔽, and final size |
| Black oxide / 发黑 | Dark surface appearance | Some tool, hardware, or low-reflection parts | Stainless grade and corrosion expectation must be reviewed |
This chart is only a starting point. Final finish selection depends on material grade, 几何学, 可见表面, 宽容, corrosion environment, cleaning requirement, and inspection standard.
For a broader surface finish overview across CNC materials, 看看我们的 CNC 表面处理指南.

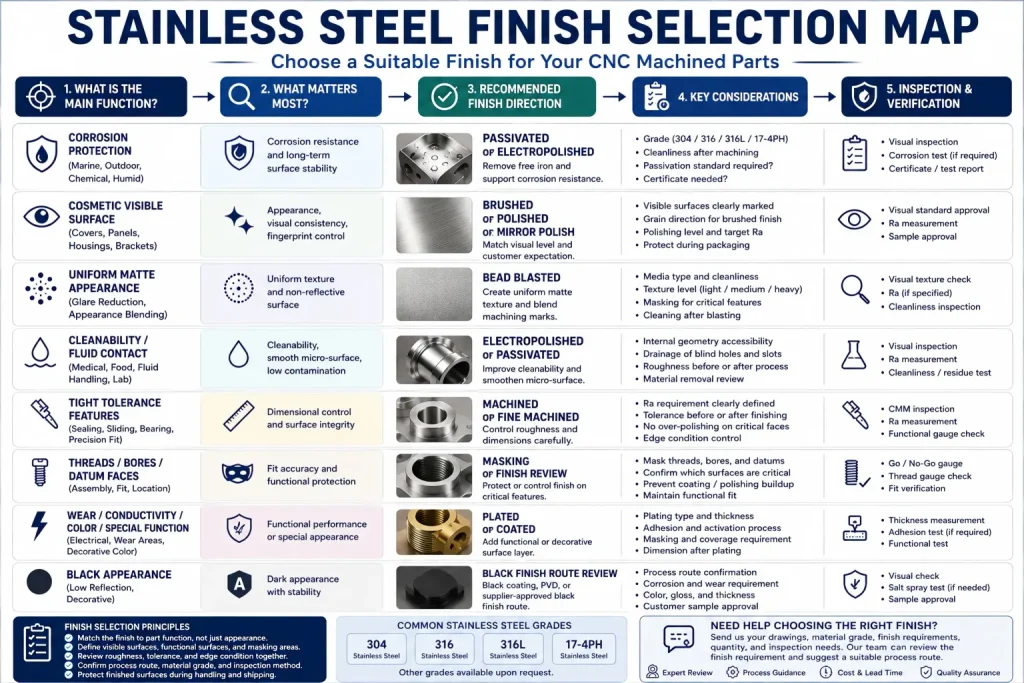

The Finish Should Match the Function
A stainless steel finish should be selected by function first, appearance second.
Different part functions need different surface priorities.
| Part Function | Finish Priority | Common Finish Choices |
|---|---|---|
| Hidden structural bracket | 成本, 毛刺去除, basic corrosion resistance | 加工状态, 去毛刺, passivated if required |
| Visible cover or panel | 外貌, 晶粒方向, scratch control | Brushed, 抛光的, 喷珠 |
| Fluid-contact part | 可清洁性, 耐腐蚀性, internal feature cleaning | Passivated, 电解抛光, controlled roughness |
| 滑动面 | Roughness, 磨损行为, 摩擦 | Fine machined, 抛光的, specified Ra |
| Sealing surface | 平整度, roughness, 无毛刺, no scratches | Fine machined, 抛光的, inspected surface |
| Medical-style or lab equipment part | Cleanliness, 耐腐蚀性, low contamination | Passivated or electropolished, depending on requirement |
| Marine or humid environment part | Corrosion resistance and surface stability | 316 / 316L with passivation review |
| Decorative stainless part | Visual consistency | Brushed, 抛光的, 镜面抛光, 喷珠 |
| Threaded stainless component | 毛刺控制, galling risk, cleaning after machining | Deburred, 清洁过的, passivated if required |
| Precision locating feature | Dimensional stability and inspection | Machined or fine machined; finish after machining must be reviewed |
The finish should not be chosen only from a catalog photo. It should be matched to how the stainless steel part is used, handled, 清洁过的, assembled, and inspected.
As-Machined Stainless Steel Finish
An as-machined stainless steel finish is the surface left directly after CNC milling, 转动, 钻孔, or grinding-related machining operations.
It may show:
- 工具痕迹
- cutter paths
- turning lines
- small burrs if not deburred
- local color changes from heat
- different texture between milled and turned areas
- visible transition lines between operations
As-machined finish can be suitable when the part is functional, hidden, or not appearance-critical.
It may not be suitable when the part is visible, handled by users, exposed to harsh corrosion conditions, or required to meet a specific roughness value.
For stainless steel, machining behavior depends strongly on grade. 303, 304, 316, 316l, 17-4PH值, 和 416 do not cut the same way. 加工硬化, 刀具磨损, 切削热, and burr formation can all affect the final surface.
For machining-specific material behavior, 看看我们的 不锈钢CNC加工指南.
Fine Machined Finish
A fine machined finish is produced by using a more controlled finishing pass, suitable tools, stable setup, and proper cutting conditions.
It may be used when the surface affects:
- 合身
- 密封
- 滑动
- bearing contact
- assembly location
- inspection repeatability
- cosmetic acceptance
- lower roughness requirement
然而, a fine machined finish is not the same as polishing.
A machined surface can be accurate but still show directional tool marks. If the customer expects a smooth visual appearance, the drawing should say whether machining marks are acceptable.
更好的询价说明是:
Fine machined surface required on marked sealing face. Tool marks acceptable outside marked area unless otherwise specified.
This prevents the supplier from polishing areas that do not need polishing or leaving tool marks on a functional face that should be controlled.
Brushed Stainless Steel Finish
A brushed finish creates a directional linear texture on stainless steel.
It is often used for:
- visible panels
- 封面
- 括号
- decorative plates
- product housings
- instrument parts
- customer-facing metal surfaces
The most important detail is direction.
A brushed finish can look wrong if the grain direction changes between surfaces or if different parts in the same assembly are brushed in inconsistent directions.
Buyers should define:
| 询价项目 | 为什么它很重要 |
|---|---|
| 可见表面 | Not every face needs brushing |
| 纹理方向 | Horizontal, vertical, circular, or drawing-marked direction |
| Surface roughness target | Helps control appearance and touch |
| 边缘条件 | Brushing may soften or highlight edges |
| 数量 | Batch consistency matters for repeat orders |
| 包装 | Brushed surfaces scratch easily |
| Fingerprint expectation | Brushed stainless can still show marks |
| Passivation after brushing | May be needed depending on corrosion requirement |
A better drawing note is:
Brush visible faces only. Grain direction as marked. Protect brushed surfaces during packaging. Passivation requirement to be confirmed before production.
Polished Stainless Steel Finish
Polishing reduces visible machining marks and can create a smoother, brighter stainless steel surface.
It is often used when the part needs:
- smoother touch
- improved appearance
- reduced visible tool marks
- easier cleaning
- lower friction
- better mating surface feel
- improved cosmetic value
But polishing is not risk-free.
Polishing can change:
- edge sharpness
- small radii
- 平整度
- surface waviness
- hole edge condition
- part dimensions in small areas
- appearance consistency across batches
A polished surface can also reveal defects that were less visible on an as-machined surface. Small pits, 划痕, weld marks, and tool chatter may become more obvious after polishing.
用于精密零件, the drawing should state whether the dimension applies before or after polishing.
更好的注释是:
Polish marked visible surfaces only. Do not polish critical bore, datum face, or threaded features unless approved.
Mirror Polishing Stainless Steel
Mirror polishing creates a highly reflective surface.
It is usually selected for cosmetic, optical-style, decorative, or cleanability-focused applications.
Mirror polishing can be difficult on complex CNC parts because:
- internal corners are hard to polish evenly
- deep pockets may trap compound
- sharp edges can become rounded
- flat surfaces can develop waviness
- small scratches are very visible
- polishing time can be much higher than machining time
- batch-to-batch visual matching can be difficult
- inspection needs may increase
A mirror finish should not be requested casually on every surface.
It is better to mark the required mirror-polished surfaces clearly and leave non-visible or functional areas with a more practical finish.
For a detailed polishing process overview, 看看我们的 mirror polishing process guide.
Bead Blasted Stainless Steel Finish
Bead blasting creates a uniform matte surface by impacting the part with controlled media.
For stainless steel CNC parts, bead blasting can help:
- reduce glare
- blend minor machining marks
- create a consistent matte appearance
- reduce visual contrast between machined faces
- prepare a part for certain downstream finishing steps
But bead blasting also has risks.
| 风险 | 为什么它很重要 |
|---|---|
| Media contamination | Wrong media can affect corrosion behavior |
| Texture inconsistency | Different pressure or distance can change appearance |
| Edge rounding | Sharp edges may be softened |
| Masking needs | Critical bores, 线程, and sealing faces may need protection |
| Roughness change | Surface texture may become rougher |
| Dimensional sensitivity | Very small features may be affected |
| Cleaning after blasting | Media residue must be removed |
| Batch matching | Texture can vary if process is not controlled |
For stainless steel bead blasting, media cleanliness is a serious process detail. If blasting media has previously been used on carbon steel or other ferrous parts, small iron particles may become embedded in the stainless steel surface.
This can create rust staining, local corrosion risk, or customer rejection after the part is exposed to humidity, cleaning fluid, or storage conditions. For corrosion-sensitive stainless steel parts, the supplier should review clean dedicated media, proper post-blast cleaning, and passivation after blasting when required.
The goal is not to make every bead blasted part over-specified. The goal is to avoid using a matte surface to hide a contamination risk.
For stainless steel, clean blasting media and proper post-blast cleaning are important. If corrosion resistance matters, passivation after blasting may need review.
For a broader chart-style view, 看看我们的 喷砂表面光洁度表.
Stainless Steel Passivation
Passivation is often misunderstood because it usually does not create a visible coating.
For stainless steel CNC parts, passivation is mainly used to remove free iron and surface contamination after machining, 去毛刺, 打扫, or mechanical finishing.
It is commonly reviewed for:
- 304 不锈钢
- 316 不锈钢
- 316L 不锈钢
- 17-4PH不锈钢
- parts exposed to humidity
- 流体处理组件
- cleaning-sensitive parts
- corrosion-sensitive assemblies
- parts stored or shipped for long periods
Passivation is not a substitute for polishing. It does not automatically remove scratches, 工具痕迹, 毛刺, or heavy discoloration.
A passivated part may look almost the same as before treatment, but the surface condition can be more stable for corrosion resistance.
更好的注释是:
Passivate after machining and deburring. Confirm stainless grade, passivation standard, 清洁路线, and whether certificate is required.
了解更多详情, 看看我们的 stainless steel passivation guide.
Electropolishing Stainless Steel
Electropolishing is an electrochemical process that removes a very thin surface layer from stainless steel.
It can create a brighter, smoother, cleaner surface compared with standard mechanical finishing.
Electropolishing may be considered when the part needs:
- improved cleanability
- smoother micro-surface
- reduced surface contamination
- brighter appearance
- better drainage and cleaning behavior
- corrosion-resistance support
- lower particle retention
- fluid-contact suitability
But electropolishing is not magic. It cannot fix poor design, deep scratches, heavy burrs, poor welding, severe pits, or badly machined surfaces by itself.
Important RFQ questions include:
| 问题 | 为什么它很重要 |
|---|---|
| Which stainless grade is used? | Not all grades respond the same way |
| Which surfaces need electropolishing? | Internal surfaces may be difficult |
| Are there blind holes or deep slots? | Fluid access and drainage matter |
| Is roughness specified before or after process? | Final acceptance must be clear |
| Are threads or tight features involved? | Material removal may affect fit |
| Is cosmetic brightness required? | Visual expectations must be aligned |
| Is a certificate required? | Documentation may affect process route |
Electropolishing can also remove material unevenly. Because the electrochemical reaction is affected by current density and surface geometry, sharp outer edges, 凸起区域, and thread crests may polish faster than flat surfaces or recessed pockets.
This can be useful for micro-smoothing and light deburring, but it may also change small radii, 边缘条件, outside dimensions, or thread fit. For close tolerance stainless steel parts, the supplier should review whether the tolerance applies before or after electropolishing and whether any pre-machining allowance is needed.
This is especially important for precision edges, sealing features, threaded areas, 薄壁, 小孔, and parts with deep internal geometry.
更好的注释是:
Electropolish marked surfaces only. Critical threads, sealing features, and tolerance areas to be reviewed before finishing.
Plated Stainless Steel Finish
Stainless steel can be plated for functional or appearance reasons, but plating requires careful review.
Plating may be used for:
- 戴阻力
- 电导率
- 可焊性
- 腐蚀保护
- friction control
- color or appearance
- surface hardness
- contact performance
Common plating-related concerns include:
- adhesion
- surface activation
- 掩蔽
- 涂层厚度
- final size after plating
- edge buildup
- internal coverage
- threaded feature fit
- inspection after plating
- corrosion testing
- contact resistance if electrical function matters
Plating adhesion on stainless steel needs special review because stainless steel quickly forms a passive chromium oxide surface. If this passive film is not properly activated, the plated layer may have poor adhesion or may fail during use, 处理, 或组装.
Depending on the plating type and supplier process, stainless steel may require an activation strike, such as Wood’s nickel strike, or another approved activation route before final plating. For close tolerance threads, 钻孔, 和交配特征, coating thickness and uneven buildup should also be reviewed before production.
Threaded stainless steel parts need extra attention because stainless threads are already prone to galling under load. If plating changes the thread fit, 摩擦, or contact condition, the RFQ should define masking, final gauge inspection, and assembly requirements before production.
A drawing should not only say:
不锈钢, 镀
更好的询价说明是:
Stainless steel grade to be confirmed. Plating type, 厚度, masked areas, 功能表面, and post-plating inspection requirement must be reviewed before production.
If a close tolerance bore, 密封面, thread, or sliding feature is plated, the drawing should say whether the tolerance applies before or after plating.
Black Oxide or Black Finish on Stainless Steel
Some buyers request a black finish for stainless steel parts.
This can mean different things depending on grade, appearance expectation, corrosion requirement, and process availability.
Possible black surface options may include:
- black oxide-type treatment where suitable
- black passivation-type appearance process
- black coating
- PVD or other decorative coating
- paint or powder coating for non-precision surfaces
- chemical blackening route depending on supplier capability
Do not assume the phrase “black stainless finish” is enough.
The RFQ should define:
- required color
- 光泽度
- wear expectation
- 腐蚀预期
- 可见表面
- masking needs
- thickness effect
- scratch resistance
- salt spray or cleaning requirement
- sample approval requirement
A black finish may look good on a photo, but the process must match the part function and acceptance method.
Stainless Steel Roughness Values: Ra Is Not the Whole Story
Surface finish is often described by Ra, such as Ra 3.2, 拉 1.6, 拉 0.8, 或拉 0.4 μm.
Ra can be useful, but it does not fully describe appearance or function.
Two stainless steel surfaces with the same Ra may look different if they have different:
- machining direction
- 抛光路线
- scratch pattern
- peak height
- waviness
- lay direction
- blasting texture
- coating condition
- 检查方法
例如, a brushed stainless surface and a fine machined surface may have similar roughness readings but very different visual appearance.
That is why buyer drawings should combine roughness values with finish description when appearance matters.
更好的注释是:
Visible face: brushed finish, grain direction as marked, approximate Ra target to be reviewed. Non-visible faces: machined and deburred.
For roughness values and general finish comparison, 回顾我们的 CNC 表面处理指南.
Finish Choice Can Affect Tolerance
Some stainless steel finishes can change final dimensions or functional surfaces.
这对于:
- 紧孔
- 轴承座
- press-fit areas
- 密封面
- sliding tracks
- 螺纹孔
- dowel holes
- 基准面
- 薄边
- 配合面
Finishing can affect tolerance through:
| Finish Route | Possible Dimensional Concern |
|---|---|
| 抛光 | Removes material and can round edges |
| 镜面抛光 | Can change small features and flatness if not controlled |
| 珠光喷砂 | Can soften edges and change surface texture |
| 钝化 | Usually minimal dimensional change, but cleaning and residue matter |
| 电解抛光 | Removes a thin surface layer |
| 电镀 | Adds thickness and may change fit |
| 涂层 | Adds thickness and may require masking |
| 刷牙 | May alter cosmetic surfaces and edge sharpness |
For fit-critical surfaces, the drawing should state whether the tolerance applies before or after finishing.
If the finish is only cosmetic, avoid applying tight tolerance notes to every visible surface unless the function truly requires it.
用于公差规划, 看看我们的 CNC加工公差指南.
毛刺, 边缘, and Finish Quality
A finish cannot always hide burrs.
In many stainless steel parts, burrs become more visible or more problematic after finishing.
例子:
| 特征 | Burr / Edge Risk |
|---|---|
| Small drilled holes | Burrs may block fit or scratch mating pins |
| 螺纹孔 | Burrs may affect thread gauge results |
| Thin slots | Burrs may bend or break during deburring |
| 密封面 | Edge damage can affect sealing |
| Brushed surfaces | Burr removal may disturb grain direction |
| Polished parts | Uneven deburring can become visible |
| 喷砂零件 | Burrs may remain under matte texture |
| Passivated parts | Burrs are not removed by passivation |
| 电镀件 | Burrs can cause thickness buildup or peeling risk |
Deburring should be planned before final finishing.
For edge quality planning, see our guide: What Is Deburring? CNC Edge Quality, Burr Removal, 及检验.
Stainless Steel Finish Selection by Application
The best finish depends on the application.
| 应用 | Practical Finish Direction |
|---|---|
| Industrial bracket | Machined, 去毛刺, passivated if corrosion risk exists |
| Visible machine cover | Brushed, 喷珠, or polished |
| Fluid-handling block | Fine machined, 钝化的, electropolished if cleanability matters |
| Food-style component | 光滑表面, passivation or electropolishing depending on requirement |
| Marine part | 316 / 316l, passivation review, surface cleaning control |
| Precision shaft | Fine machined or polished bearing/contact areas |
| Sealing component | Controlled roughness, no scratches, burr-free edges |
| Threaded insert or fitting | 去毛刺, thread gauge inspection, passivation if required |
| Decorative knob | Brushed, 抛光的, or mirror polish |
| Electrical contact part | Plating and contact surface review |
| Medical-style housing | Cleanable finish, passivation/electropolishing review |
| Prototype part | Machined and deburred unless cosmetic finish is required |
A finish chart should guide selection, not replace engineering review.

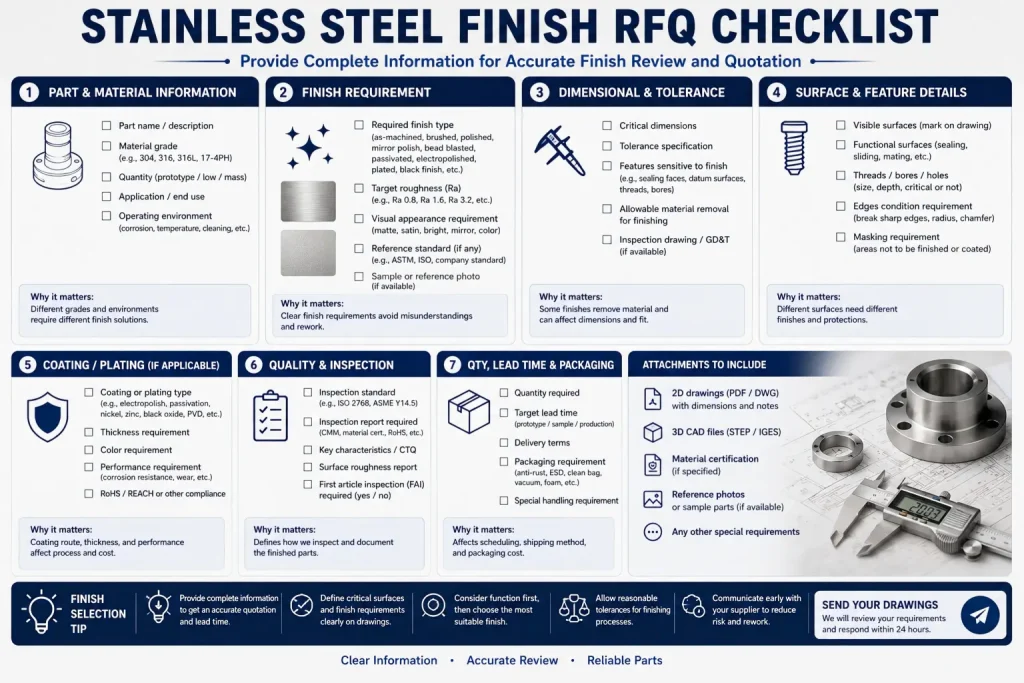

RFQ Checklist for Stainless Steel Finish
Before quoting stainless steel CNC parts, provide clear finish information.
| 询价项目 | 提供什么 |
|---|---|
| Stainless grade | 303, 304, 316, 316l, 17-4PH值, 416, or other grade |
| 2D图 | Include finish notes, roughness values, 关键尺寸, and datums |
| 3D型 | 步 / STP / IGES / X_T if available |
| 可见表面 | Mark which surfaces are cosmetic |
| 功能表面 | Mark sealing, 滑动, 轴承, and mating areas |
| Finish type | Machined, 拉丝的, 抛光的, 喷珠, 钝化的, 电解抛光, 镀, or coated |
| Roughness requirement | Ra value if needed |
| 纹理方向 | Required for brushed surfaces |
| 遮蔽区域 | 线程数, 钻孔, 基准面, 密封面, or contact zones |
| Final tolerance condition | Before or after finishing |
| 腐蚀环境 | Humid, 海军陆战队, cleaning chemical, fluid contact, 室内的, 户外的 |
| 检验要求 | Visual standard, roughness report, CMM, 仪表, certificate |
| 数量 | 原型, 低音量, 或重复生产 |
| Packaging need | Protection for cosmetic or polished surfaces |
A good RFQ does not only say what finish is required. It explains where the finish applies and what the finish must protect.
Practical Drawing Notes
General Stainless CNC Part
材料: 304 不锈钢. Machined and deburred. Passivation requirement to be confirmed before production.
This is suitable when the buyer wants basic stainless machining but has not confirmed corrosion testing or finish standards.
Brushed Visible Surface
Brush marked visible faces only. Grain direction as shown. Protect visible surfaces during packaging.
This prevents unnecessary finishing on hidden surfaces and helps control appearance.
Passivated Stainless Part
Passivate after machining, 去毛刺, and cleaning. Internal threads and blind holes must be cleaned and rinsed before shipment. Certificate required if specified on PO.
This connects passivation to cleaning and documentation.
Polished Sealing Face
Polish marked sealing face only. Final roughness and flatness to be inspected after polishing. Do not round sealing edge.
This protects function while avoiding over-polishing the full part.
Plated Stainless Feature
Plating thickness applies after machining. Mask critical bore and datum face unless otherwise approved. Final dimensions apply after plating.
This avoids fit problems caused by coating thickness.
Finish Mistakes That Cause RFQ Problems
Many finish problems come from unclear drawings, not from the finish process itself.
Common mistakes include:
- writing “smooth finish” without a roughness value
- asking for mirror polish on all surfaces without marking visible faces
- requiring passivation but expecting a cosmetic change
- not saying whether tolerance applies before or after plating
- forgetting to mask threads, 钻孔, or datum faces
- using Ra value alone to define visual appearance
- not defining grain direction for brushed surfaces
- applying the same finish to hidden and visible areas
- requesting bead blasting without defining media or texture expectation
- approving the material but not the final surface condition
- ignoring packaging protection for polished or brushed parts
对于数控买家, the most practical rule is simple:
Mark the important surfaces, explain the function, and define the final inspection condition.
Rapid Efficient Support for Stainless Steel Finish Review
Rapid Efficient can review stainless steel CNC machined parts before quotation and help confirm whether the requested finish matches the material, 几何学, 宽容, surface function, 及检验要求.
We can review:
- 不锈钢等级
- machined surface condition
- visible and non-visible surfaces
- deburring needs
- passivation requirement
- polishing or brushing direction
- bead blasting suitability
- electropolishing or plating review
- masking needs
- tolerance before or after finishing
- roughness inspection
- packaging protection
根据项目要求, 材料证明, 三坐标测量机报告, roughness checks, and inspection reports may be reviewed before quotation.
For manufacturing review, 看看我们的 CNC加工设计指南 和 质量保证 pages.
将您的 STEP 文件发送给我们, 2D图, 不锈钢等级, 表面光洁度要求, visible surface notes, roughness target, 数量, 检验要求, 及交付目标.
Buyer Questions About Stainless Steel Finishes
What is the best finish for stainless steel CNC parts?
There is no single best finish. The best choice depends on appearance, 耐腐蚀性, roughness, 打扫, 宽容, 和应用. Machined, 拉丝的, 抛光的, 喷珠, 钝化的, 电解抛光, and plated finishes solve different problems.
Is passivation a visible finish?
Usually no. Passivation normally does not create a strong visual change. It is mainly used to remove free iron and support corrosion resistance after machining and cleaning.
Does polishing change part dimensions?
它可以. Polishing removes material and may round edges, soften small features, or affect flatness if not controlled. Critical features should be marked clearly before polishing.
Is bead blasting good for stainless steel?
It can be useful for a uniform matte appearance, but media, 压力, 掩蔽, 打扫, and corrosion requirements should be reviewed. For stainless parts, media contamination should be avoided.
Should stainless steel be passivated after bead blasting?
有时. If corrosion resistance matters, passivation after blasting may need review. The final decision depends on stainless grade, blast media, 清洁路线, 及应用环境.
Is electropolishing better than passivation?
并不总是. Electropolishing and passivation are different processes. Electropolishing can smooth and brighten the surface, while passivation mainly removes free iron and supports corrosion resistance. The right choice depends on cleanability, 外貌, 几何学, 和成本.
What should I send for a stainless steel finish RFQ?
发送 2D 图纸, 3D型, 不锈钢等级, visible surface marks, required finish, roughness value if needed, 遮蔽区域, final tolerance condition, 数量, 及检验要求.
