结论第一
Aluminum is one of the best materials for CNC machining because it combines low weight, 机械加工性强, 耐腐蚀性, and excellent dimensional stability.
For most precision parts, 6061-T6 offers the best balance of cost and performance, 尽管 7075-T6 is preferred for high-strength aerospace or structural components.
The key to successful aluminum machining is choosing the right alloy, setting realistic tolerances, selecting the proper finish, and working with a supplier that understands threading, 毛刺控制, and fixture strategy.
If you need custom production support, RapidEfficient provides aluminum CNC machining from prototype to volume production.
为什么铝是 CNC 加工的理想选择
Aluminum is widely used because it offers:
- 高强度重量比
- fast machining speeds
- 优异的耐腐蚀性
- 良好的导热性
- clean cosmetic finishes
- lower cycle time than steel or titanium
This makes it ideal for housings, 括号, 固定装置, 散热器, 医疗器械, 机器人零件, and electronics components.

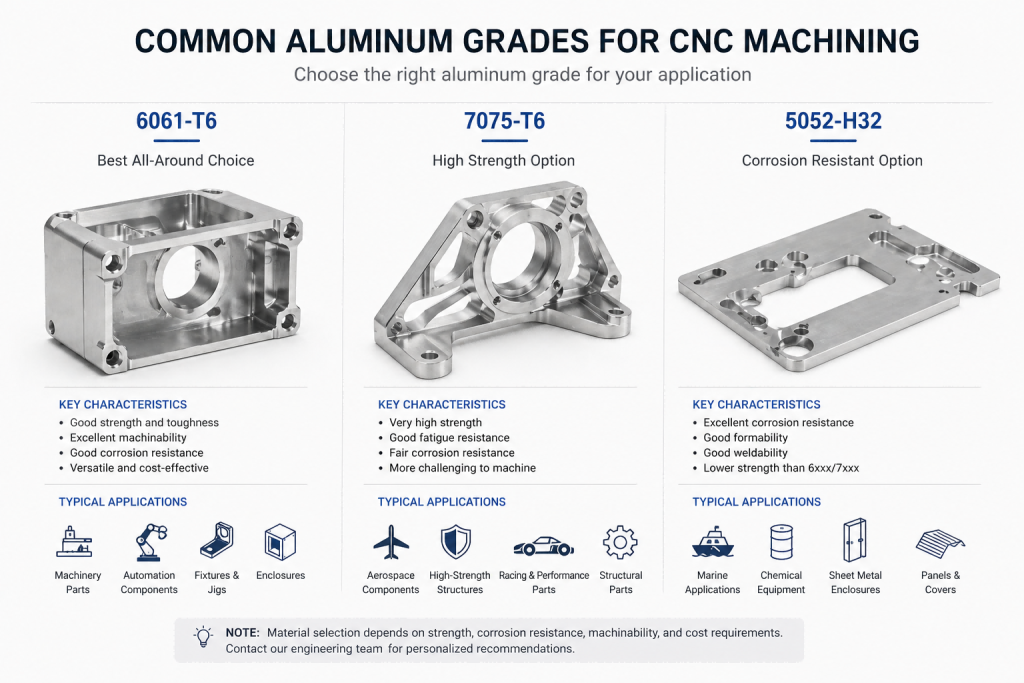

Best Aluminum Grades for CNC Machining
| 年级 | 最适合 | 主要优势 |
|---|---|---|
| 6061-T6 | General precision parts | Best cost/performance |
| 7075-T6 | High strength parts | 实力卓越 |
| 5052 | Covers and enclosures | 耐腐蚀 |
| 2024 | 航空航天零件 | 抗疲劳性 |
| MIC6 | Tooling plates | Flatness and stability |
For buyers comparing popular alloys, see our detailed guide on [6061 与 7075 CNC加工用铝]
What Tolerances Are Realistic?
Standard CNC tolerances for aluminum parts are often:
- ±0.05 mm for general features
- ±0.02 mm for precision fits
- ±0.01 mm for critical bores or datums
- tighter tolerances possible with process control or secondary operations
These values are planning examples rather than universal aluminum machining standards. Achievable tolerance depends on feature size, 几何学, 壁厚, 库存形式, 工具范围, 设置计数, 表面处理, 温度, 及检验方法.
Tighter tolerances increase setup complexity, 检查时间, 和机械加工成本.
For standard tolerances, tight-feature risks, 适合, GD&时间, 和检查计划, 回顾我们的 CNC加工公差指南.

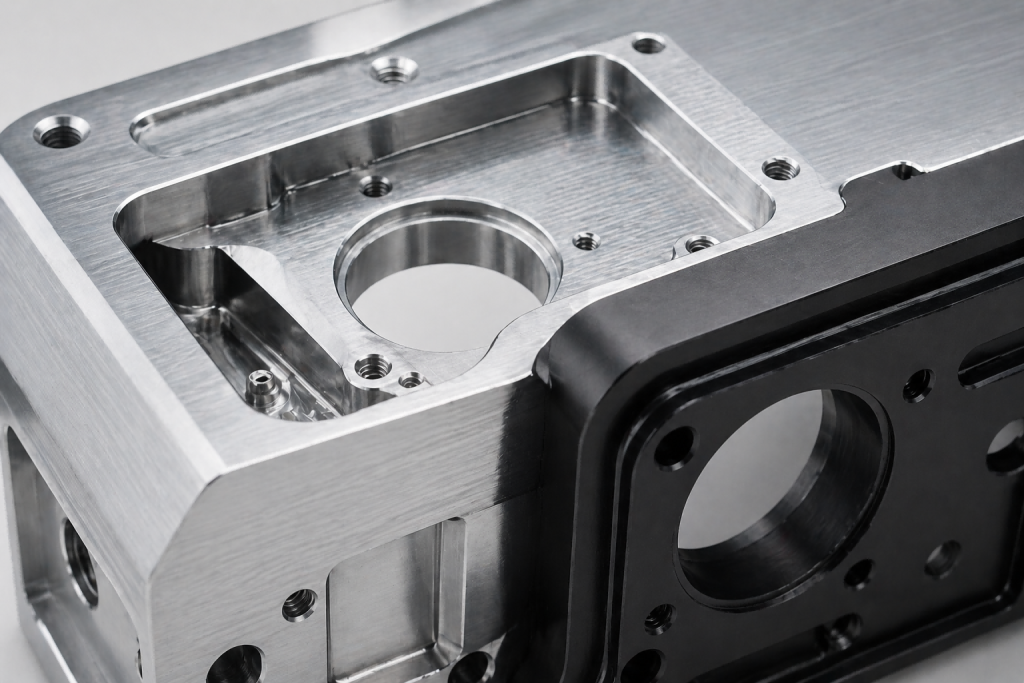

Surface Finish Options
Common surface finishes include:
- 加工状态
- Bead blasted
- Clear anodized
- 黑色阳极氧化
- Hard anodized
- 粉末涂料
- Cosmetic brushed finish
If appearance or sealing surfaces matter, 阅读我们的 [CNC 加工铝材的表面光洁度指南]
线程数, 毛刺, and Edge Quality
Many aluminum parts fail not on dimensions, but on finishing details such as damaged threads, sharp burrs, poor chamfers, or cosmetic scratches.
For tapping, 螺纹铣削, blind-hole risks, pilot-hole control, and thread inspection, 回顾我们的 thread milling vs tapping guide.
For burr causes, edge-break requirements, deburring methods, internal cross-hole risks, 和检查计划, 查看我们的指南 deburring in CNC machining.
Cost Drivers in Aluminum Machining
Main cost factors include:
- 材料等级
- 零件尺寸
- 周期
- setup quantity
- 刀具磨损
- 耐受水平
- 整理过程
- order quantity
设计技巧
Adding standard radii, realistic tolerances, and tool-accessible geometry can significantly reduce machining cost.
If you’d like feedback before production, RapidEfficient offers free DFM review for custom aluminum parts.

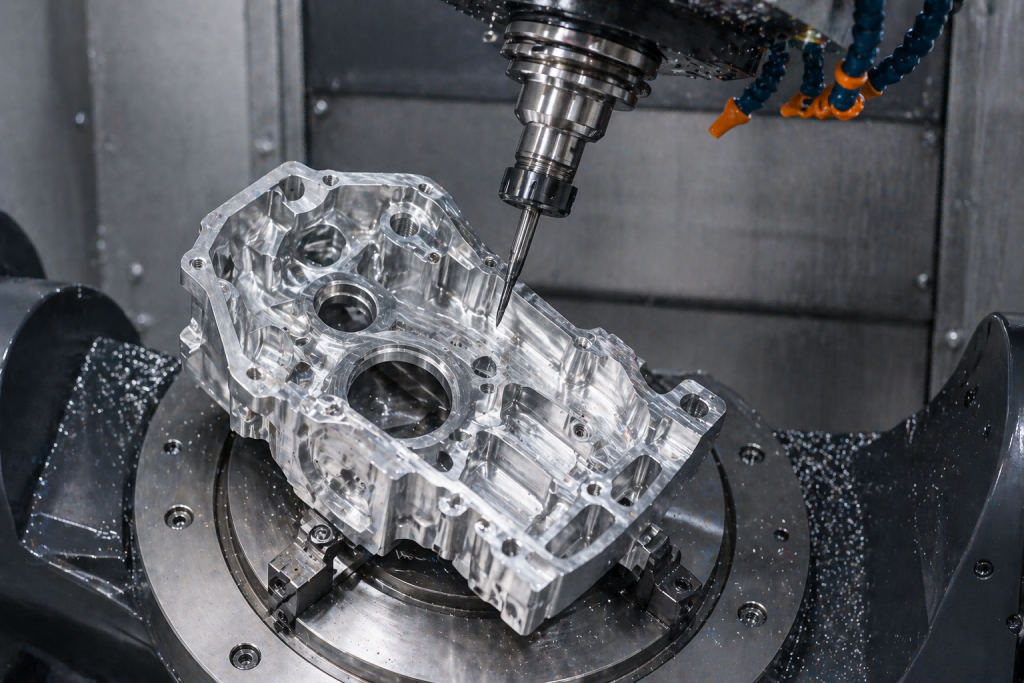

When to Use 5-Axis CNC
5-axis machining is ideal for:
- complex housings
- multiple-angle holes
- curved surfaces
- reduced setups
- improved positional accuracy
For suitable complex aluminum housings, 5-axis machining can reduce repositioning and setup-related variation. Whether it reduces lead time or improves final accuracy depends on geometry, 夹具策略, 工具访问, machine capability, 编程, 和检查.
You can also explore our [5-axis CNC machining capabilities]
工程师注意事项
Many buyers focus only on unit price.
The best suppliers reduce total project cost through better fixture design, fewer defects, cleaner finishes, faster communication, and fewer production delays.
常问问题
什么铝最容易加工?
6061-T6 is usually the best all-around option.
是 7075 harder to machine than 6061?
7075 is stronger and harder than 6061 in common T6 and T651 conditions, but it is not automatically more difficult to machine in every operation. 工装, 芯片控制, 脾气, 几何学, and setup stability still affect machining performance.
Can aluminum hold tight tolerances?
是的. Precision aluminum parts regularly achieve ±0.01 mm with proper controls.
Does anodizing affect dimensions?
是的. Critical fits should account for coating thickness buildup.
