The Reality of Spindle Time
In precision manufacturing, time is the only currency. When a quote for a $\pm 0.005$ mm part feels excessive, the cost isn’t usually driven by the material—it’s driven by the clock. “Over-engineering” is a silent budget killer. If a tool must crawl at a snail’s pace to reach a sharp internal corner or maintain a non-functional tolerance, you are paying for spindle time that adds zero value to your component.
❓ The “Expensive Quote” Breakdown: Technical FAQs
Q: Why is my CNC machining quote so high?
A: It often comes down to features that fight the laws of physics. Sharp internal 90-degree corners, for instance, cannot be milled. They require secondary EDM (Electrical Discharge Machining), which can double the cost of a feature instantly.
Q: Can I lower the price without switching to a cheaper alloy?
A: Yes. By maximizing the Material Removal Rate (MRR). If your design allows for larger cutters and higher feed rates, the machine time drops, and so does your invoice.
Expert Note: In many cases, switching to a high-machinability alloy like Aluminum 6061-T6 can reduce costs by 30% compared to stainless steel due to sheer cutting speed.
📊 The Cost-Exponential Curve: DFM Impact Table
We use these benchmarks to help clients understand where their money goes. Notice how tightening a tolerance by half can double the production time:
| Feature | The “Over-Engineered” Way | The RapidEfficient Way | Cost Impact |
| Internal Corners | Sharp 90° (Requires EDM) | R > Tool Radius (Milled) | -15% |
| Thread Depth | 5x Diameter | 2.5x Diameter | -5% |
| Hole Geometry | Flat Bottoms (Extra tool change) | 118° Drill Point | -10% |
| Tolerance | Global ±0.01 mm | Selective ±0.05 mm | -25% |
| Surface Finish | Ra 0.4 (Global) | Ra 3.2 (Standard) | -15% |
📝 5 Practical Design Adjustments

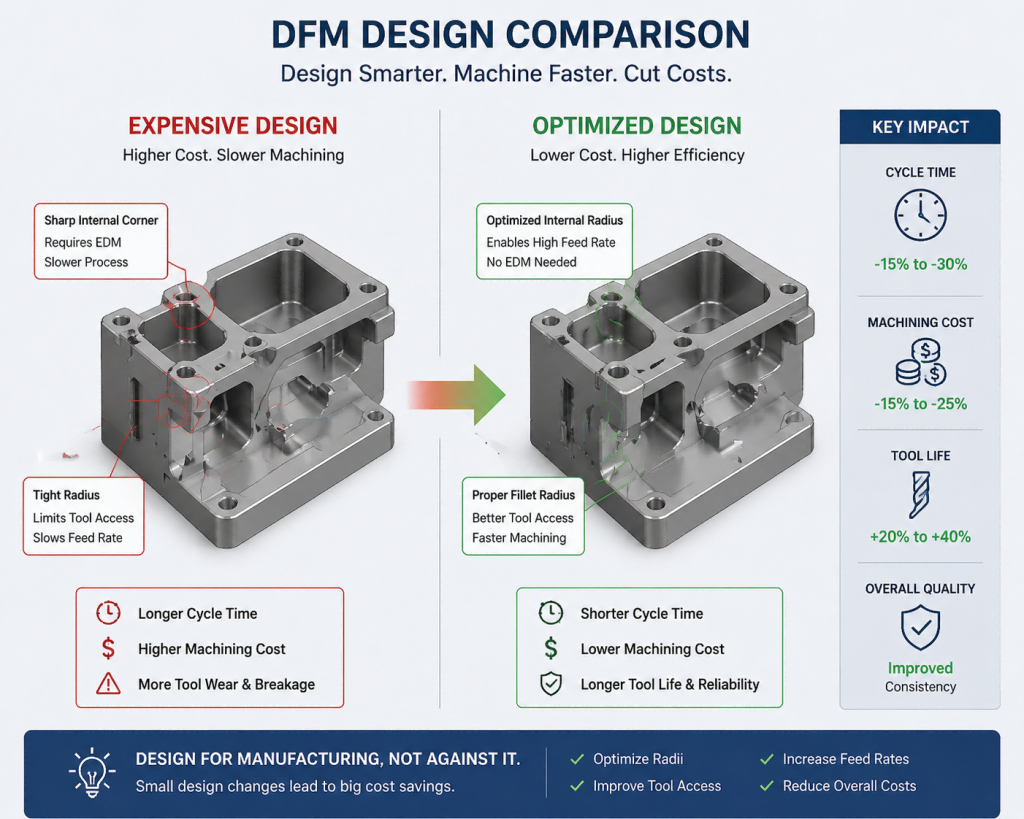

- Design for Round Tools: CNC cutters are round. A sharp internal corner is a physical impossibility for a mill. Adding a fillet slightly larger than the tool radius allows the cutter to “glide” through corners without stopping. See how we applied this to high-precision 5-Axis Aluminum Housings.
- Thread Depth: The 3x Rule: Most structural strength is achieved within the first 2.5 to 3 threads. Anything deeper doesn’t add strength; it only increases the risk of tap breakage and scrap. Refer to our Aluminum Threading Guide for shop-floor standards.

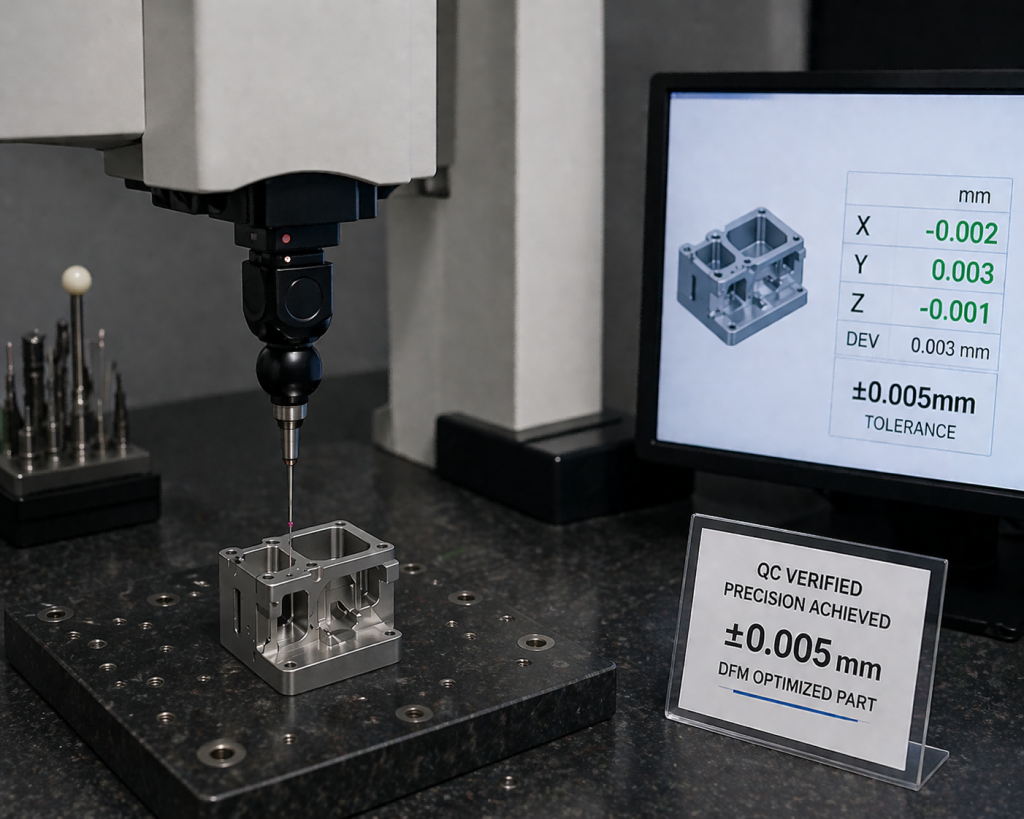

- Tolerancing where it Matters: Don’t pay for micron-level precision on a surface that “touches air.” Save your tightest ±0.005 mm tolerances for mating faces and bearing bores.
- Simplify Hole Bottoms: Whenever possible, use standard drill points. Flat-bottom holes require a secondary end-mill operation, which adds time and cost.
- Rationalize Surface Finishes: An Ra 0.8 finish is essential for seals, but overkill for a bracket. Over-specifying surface finish is a major contributor to high costs. Review our Surface Finish Guide to match your needs.
🏆 Case Study: From Over-Budget to Optimized
An aerospace client recently provided a housing design with global ±0.01 mm tolerances. By working with their team to relax non-critical dimensions and optimizing radii for our High-Speed Cutting Strategy, we reduced the unit cost from $55 to $43.
- Result: 22% cost reduction with zero impact on assembly performance.
- Lead Time: Shortened by 3 days.
Engineer’s Final Word
“The most expensive part of a CNC job isn’t the metal; it’s the idle spindle. Every second the machine moves slowly to accommodate an unnecessary design feature is money wasted. We don’t just cut parts; we optimize the path to your final product.”
