How to Prevent Scratches on CNC-Machined Aluminum Parts

March 26, 2026

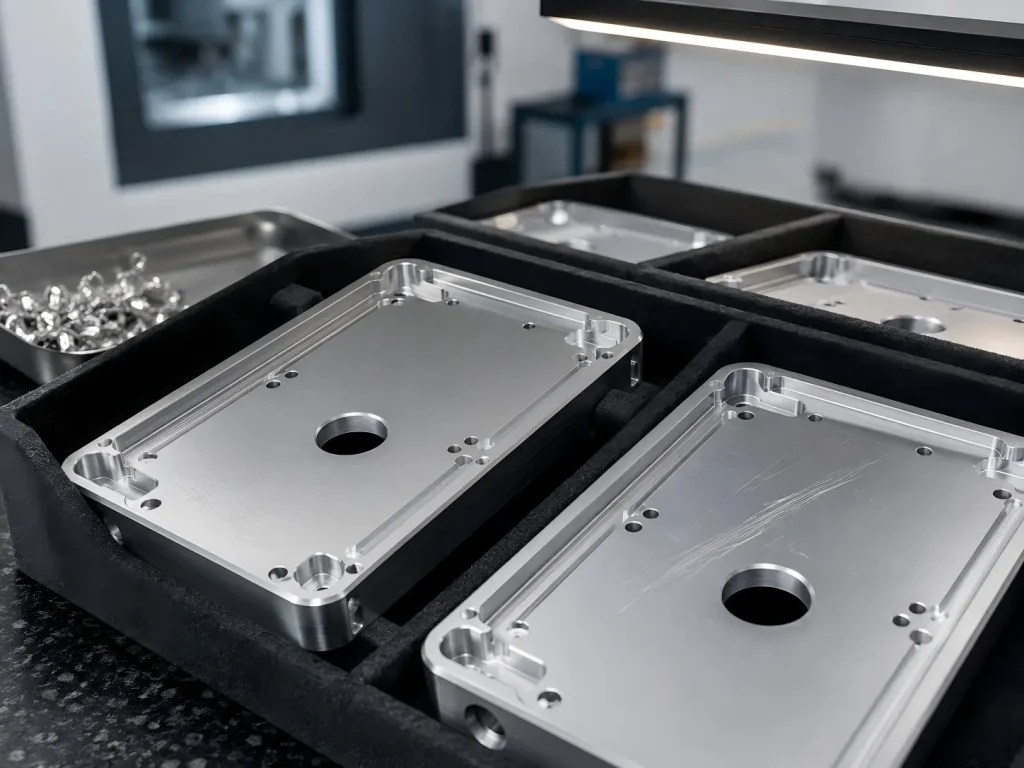

Clean and scratched CNC-machined aluminum housings separated in protective trays under raking light for cosmetic surface inspection.

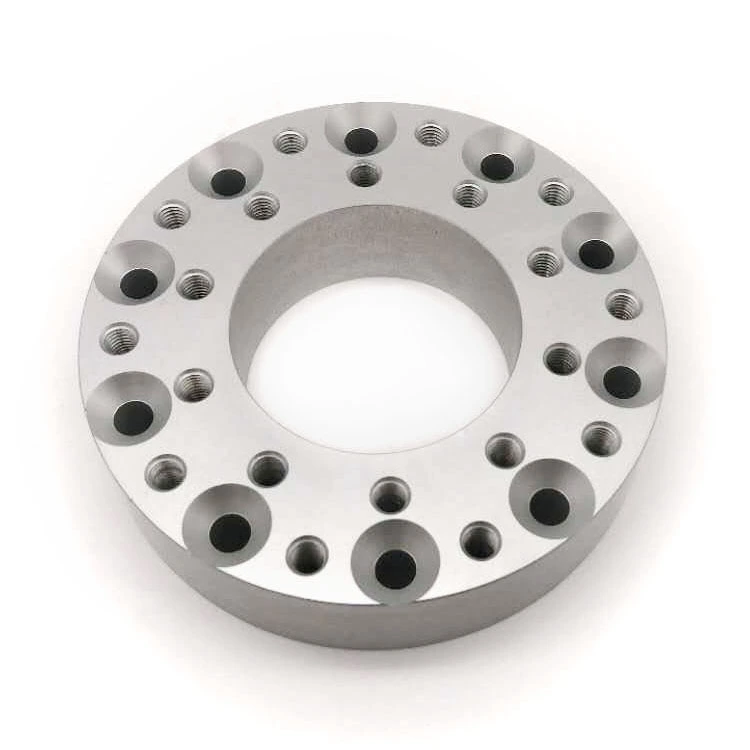

Scratches on CNC-machined aluminum parts do not occur only during cutting.

A part may leave the machine with a clean surface and still be damaged during deburring, cleaning, inspection, transfer to anodizing, assembly, packaging, or transportation.

This is especially important for:

Cosmetic housings
Control panels
Camera and optical components
Consumer-electronics parts
Medical-device enclosures
Robot covers
Aluminum frames
Anodized brackets
Visible assembly components

The practical goal is not to promise that every aluminum surface will be completely free from every microscopic mark. The goal is to identify the surfaces that matter, reduce avoidable damage throughout production, and inspect the finished parts against an agreed appearance standard.

Quick Answer

To reduce scratches on CNC-machined aluminum parts:

Mark cosmetic surfaces clearly on the drawing.
Use sharp aluminum-cutting tools and control built-up edge.
Remove chips before they are dragged across finished surfaces.
Keep jaws, fixtures, tables, trays, and gloves clean.
Place clamps and locating points on approved non-cosmetic areas.
Plan finishing toolpaths to avoid dwell, tool re-entry, and retract marks.
Deburr edges without rubbing abrasive tools across visible faces.
Separate parts during cleaning, inspection, storage, and transport.
Protect parts before anodizing and define acceptable rack locations.
Inspect appearance under agreed lighting, distance, angle, and viewing time.
Package each cosmetic part so metal surfaces cannot contact each other.

Surface roughness values such as Ra may support process control, but they do not replace visual inspection for isolated scratches, dents, stains, or handling marks.

Where Do Scratches on Aluminum Parts Come From?

A visible scratch can be created at almost any stage of production.

Production stage	Common source of scratching	Practical prevention
CNC roughing	Chips trapped between the tool, fixture, or part	Improve chip evacuation and clean the setup
CNC finishing	Built-up edge, dull tool, tool re-entry, or chip recutting	Use a stable finishing tool and controlled toolpath
Workholding	Dirty jaws, hard contact points, excessive local pressure	Use clean, qualified contact surfaces and suitable soft jaws
Part removal	Sliding the part across the fixture or machine table	Lift the part clear instead of dragging it
Deburring	Abrasive pads or files touching cosmetic faces	Limit deburring to specified edges
Cleaning	Chips embedded in cloths, brushes, trays, or gloves	Use clean tools, clean trays, and approved cleaning methods
Inspection	Dirty granite, gauges, fixtures, or repeated sliding	Clean all contact surfaces and use protected supports
Anodizing transport	Parts touching each other in baskets or racks	Separate components and define rack locations
Internal transport	Mixed parts moving inside a tray	Use dedicated pockets or soft separators
Packaging	Metal-to-metal contact or loose parts	Package parts individually or in separated cells
Shipping	Vibration, compression, or damaged separators	Validate packaging for the part weight and route

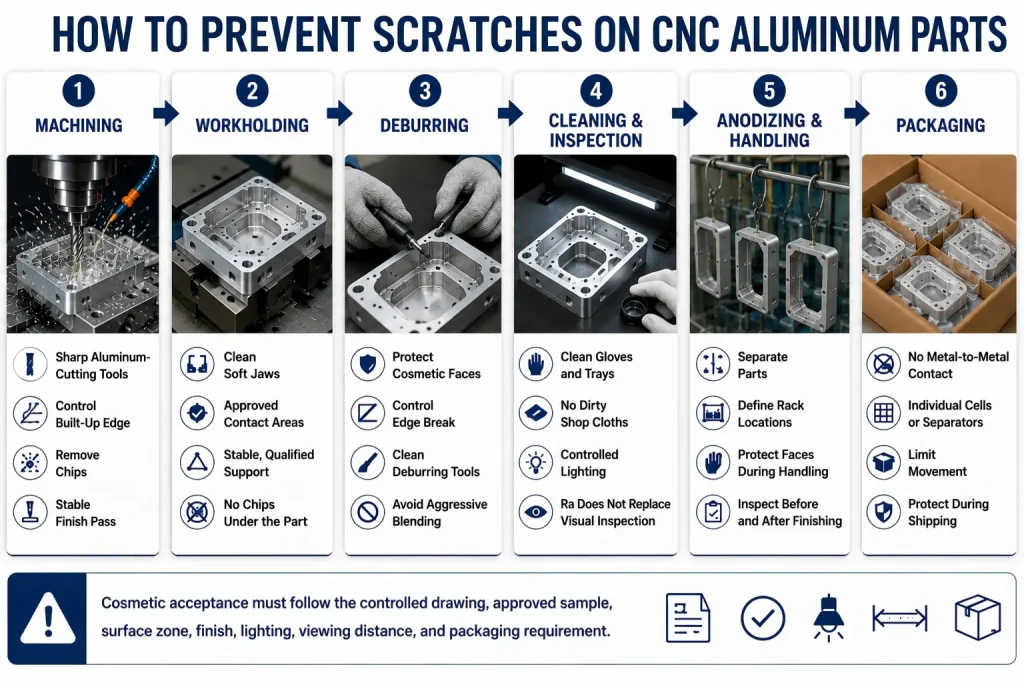

CNC aluminum scratch-prevention workflow covering machining, workholding, deburring, cleaning, visual inspection, anodizing handling, and separated packaging.

For broader issues such as built-up edge, burrs, chatter, deformation, and chip evacuation, review our aluminum machining problems guide.

1. Define Cosmetic Surfaces Before Machining

Scratch prevention begins with the drawing, not with final inspection.

The supplier needs to know which surfaces are visually critical and which surfaces will be hidden after assembly.

A useful drawing or cosmetic specification should identify:

Customer-facing surfaces
Surfaces visible after assembly
Hidden internal surfaces
Clamp-permitted areas
Rack-mark-permitted areas
Areas covered by labels, seals, or fasteners
Areas requiring protective film
Surfaces that must remain electrically conductive
Surfaces that will be anodized, painted, plated, or bead blasted

Do not rely only on a note such as:

No scratches allowed.

That statement does not define how the part will be evaluated.

Define the Inspection Conditions

The appearance requirement may need to specify:

Lighting type and approximate intensity
Viewing distance
Viewing angle
Maximum inspection time
Whether the part is viewed before or after finishing
Whether the part is dry, cleaned, or assembled
The approved reference sample
Acceptance limits for scratches, dents, stains, tool marks, and color variation

Terms such as Class A, Class B, or Class C should only be used when the project has a controlled definition for those classes. Different customers may use different meanings.

2. Control Chips Before They Recut the Surface

Aluminum chips can be sharp enough to mark a finished surface.

During pocketing, drilling, or high-material-removal operations, chips may remain inside the cavity and be dragged under the tool or across the workpiece.

Common risk areas include:

Deep pockets
Horizontal ledges
Blind holes
Thin ribs
Large flat cosmetic faces
Fixtures with poor drainage
Parts positioned where chips collect around the jaws

Practical Chip-Control Measures

Depending on the machine, process, part geometry, and workplace procedure, chip control may include:

Suitable flute geometry for aluminum
Adequate flute space
Through-tool or external coolant
Controlled air blast where permitted
Toolpaths that move chips out of pockets
Periodic chip clearing between operations
Cleaning the fixture before the finishing setup
Avoiding unnecessary travel across finished faces
Separating roughing and finishing tools

The process should prevent chips from being trapped between:

The workpiece and soft jaws
The workpiece and support points
The workpiece and machine table
Two stacked parts
The part and an inspection fixture

Manual chip removal should only be performed after the machine is in a safe stopped condition and according to the approved workplace procedure.

3. Use Tools Suitable for Aluminum Finishing

A tool that is acceptable for roughing may no longer be suitable for a cosmetic finishing pass.

Aluminum can adhere to the cutting edge. This built-up material changes the effective tool geometry and may produce:

Drag marks
Torn material
Uneven surface texture
Burrs
Local gouges
Sudden changes in surface finish

Tool Features to Review

The machining plan may consider:

Sharp cutting edges
Polished flutes
Suitable rake geometry
Sufficient flute space
Controlled tool runout
Short, rigid tool projection
Stable toolholding
Coatings selected for the alloy and operation
Dedicated finishing tools
Defined tool-life limits

DLC, ZrN, uncoated polished carbide, and other tool options can all be useful in the correct application. No single coating or flute count is best for every aluminum alloy, machine, coolant system, and feature.

Separate Roughing and Finishing Tools

A finishing tool should not be assumed to remain suitable after long roughing cycles or interrupted cuts.

For high-visibility surfaces, a controlled finishing tool can reduce the risk of:

Edge chipping
Built-up edge
Dimensional drift
Random texture changes
Tool marks that become more visible after anodizing

4. Plan the Toolpath Around Cosmetic Surfaces

Even a sharp tool can leave visible marks when the finishing toolpath is poorly planned.

Potential causes include:

Tool dwell
Repeated passes over the same area
Lead-in or lead-out marks
Tool re-entry on a visible face
Sudden feed changes
Retracting while the cutting edge still touches the wall
Finishing across trapped chips
Changes in tool pressure at thin sections

Better Finishing Strategy

The exact strategy depends on the part, but the process may include:

Place lead-in and lead-out moves outside critical surfaces when possible.
Avoid stopping or dwelling on a cosmetic wall.
Use consistent engagement during the finish pass.
Leave a controlled finishing allowance after roughing.
Keep the toolpath direction consistent on adjacent visible faces.
Review transitions between floors, walls, radii, and chamfers.
Reduce unnecessary tool re-entry.
Check that retract moves clear the surface.
Use stable cutting conditions rather than chasing a single surface-roughness number.

Climb milling often provides a cleaner finish on a rigid CNC setup, but the final strategy must still consider machine condition, toolpath direction, fixture rigidity, wall thickness, and chip evacuation.

5. Prevent Jaw, Fixture, and Support Marks

Workholding must locate and hold the part securely without damaging designated visible areas.

A soft jaw is not automatically safe. It can still scratch a part when:

Chips remain in the jaw
The jaw surface is damaged
Clamping force is concentrated on a small area
The part slides during tightening
The jaw contacts an unsupported thin wall
Multiple parts are loaded without cleaning the fixture

Workholding Options

Depending on the geometry, workholding may use:

Machined soft jaws
Sacrificial tabs
Vacuum fixtures
Dedicated nests
Expanded mandrels
Collets
Approved internal clamping features
Temporary stock extensions
Non-cosmetic locating pads

The fixture should control the part without placing unapproved materials between critical locating surfaces. Tape, protective film, paper, or soft pads can change the part position or reduce clamping stability when used in the wrong location.

Clean Between Parts

Before loading the next workpiece:

Remove chips from jaws and support points.
Check locating surfaces for burrs.
Inspect the fixture for damage.
Clean the workpiece contact areas.
Confirm that the part sits fully against the intended locators.
Avoid sliding the part into position across a cosmetic face.

6. Protect Finished Surfaces During Part Removal

A good machined finish can be lost in seconds during unloading.

Common mistakes include:

Sliding the part across a chip-covered fixture
Placing the part directly on the machine table
Stacking finished components
Dropping parts into a shared container
Holding two parts in one hand
Using gloves contaminated with chips or abrasive dust

A controlled unloading method should include:

A clean receiving tray near the machine
Separate pockets or separators
Clean gloves appropriate for the process
Defined handling surfaces
No metal-to-metal stacking
Immediate protection of completed cosmetic faces

Parts should be lifted clear of the fixture rather than dragged over locating or support surfaces.

7. Deburr Without Damaging Adjacent Faces

Deburring is a common source of scratches because it occurs after the main CNC process, when the visible surfaces are already complete.

Potential risks include:

Files slipping onto the face
Abrasive pads crossing visible surfaces
Rotary brushes contacting adjacent walls
Loose chips trapped under the part
Aggressive edge rounding
Part-to-part contact during batch deburring

Match the Deburring Method to the Requirement

Possible methods include:

Hand deburring tools
Controlled chamfer milling
Nylon abrasive brushes
Ceramic tools
Countersinking
Thermal or electrochemical processes for suitable applications
Tumbling for parts where texture change is acceptable

Tumbling, bead blasting, aggressive brushing, and polishing can change the entire surface appearance. They should not be used as a generic repair for a local scratch unless the drawing and finish specification permit the resulting texture.

The edge-break requirement should define whether the part needs:

Burr removal only
A specified chamfer
A specified radius
A visual edge blend
No touch on an adjacent cosmetic face

8. Clean Parts Without Introducing New Damage

Cleaning removes coolant, chips, oil, and debris, but an uncontrolled cleaning process may create new scratches.

Avoid:

Reusing dirty shop cloths
Wiping chips across the surface
Mixing machined parts in one wash basket
Using brushes with embedded metal particles
Placing wet parts on dirty trays
Using unapproved chemicals on aluminum
Allowing residues to dry on cosmetic surfaces

Controlled Cleaning Steps

A suitable process may include:

Remove loose chips without dragging them across the part.
Use a cleaning method compatible with the alloy and final finish.
Keep brushes, cloths, trays, and gloves clean.
Rinse away remaining debris.
Dry parts without creating stains.
Place clean parts in separated trays.
Protect surfaces before the next operation.

Cleaning requirements may differ for parts going to anodizing, painting, adhesive bonding, welding, electrical grounding, or final assembly.

9. Protect Parts Before and After Anodizing

Anodizing does not normally hide machining scratches. Differences in texture, polishing, blasting, contamination, and handling may remain visible or become easier to notice after finishing.

Protection should therefore begin before the parts leave the machining area.

Before Sending Parts to the Finisher

Confirm:

Cosmetic surfaces
Alloy and temper
Required anodizing type and color
Rack-mark-permitted locations
Masked areas
Threads and fits requiring allowance
Surface-preparation method
Packaging between machining and finishing
Whether parts can contact each other in the rack or basket

After Anodizing

An anodized surface can still be damaged by:

Metal-to-metal contact
Sharp separators
Dirty inspection fixtures
Fasteners placed loose inside the package
Sliding parts across the table
Incorrect protective film
Abrasive packaging material

For more detail on color variation, stains, burns, rack marks, surface preparation, and visible machining defects, review our aluminum anodizing defects guide.

Available mechanical, conversion, anodizing, coating, and plating options are summarized in our surface finishes for CNC-machined parts.

10. Do Not Use Ra as the Only Appearance Standard

Surface roughness and visual appearance are related, but they are not the same inspection result.

A localized scratch may be visually unacceptable while having little effect on an average Ra measurement. A uniform machined texture may also have a higher Ra value while still meeting the approved cosmetic appearance.

Visual inspection should distinguish between:

Uniform machining texture
Feed marks
Chatter
Isolated scratches
Dents
Gouges
Burrs
Stains
Water marks
Polishing variation
Anodized color variation
Rack marks

Appearance Inspection May Include

Controlled lighting
Agreed viewing distance
Defined viewing angle
Cleaned and dry parts
Approved comparison samples
Magnification only when specified
Separate criteria for each surface zone
Documentation of repeated defects
Photographs under controlled conditions

A dimensional first-article report or CMM report does not automatically confirm that cosmetic surfaces meet the appearance standard. Dimensional and cosmetic acceptance should be treated as separate requirements.

11. Separate Parts During Internal Transport

Parts may pass through several areas:

CNC machining
Deburring
Cleaning
Inspection
Surface finishing
Assembly
Packaging

Every transfer adds another opportunity for damage.

A suitable internal transport system may use:

Dedicated trays
Individual pockets
Foam or plastic dividers
Clean reusable nests
Soft separators compatible with the finish
Covered containers
Part identification outside the cosmetic face
Defined maximum parts per tray

Avoid placing finished aluminum parts loose in:

Metal baskets
Shared plastic boxes
Cardboard boxes containing chips
Containers with fasteners or tools
Trays previously used for unfinished parts

12. Design Packaging Around the Finished Surface

Packaging should stop the parts from moving, rubbing, or colliding during storage and international transport.

The packaging plan depends on:

Part weight
Part geometry
Surface finish
Sharp edges
Quantity per box
Shipping distance
Humidity
Cleanliness requirements
Whether the part is anodized, painted, polished, or unfinished

Practical Packaging Options

Individual bags
Separate foam cells
Corrugated dividers
Protective sleeves
Soft interleaving material
Dedicated thermoformed trays
Edge protectors
Desiccant where appropriate
Outer cartons sized to limit movement

Protective film should only be applied when it is compatible with:

The finish
Required cleanliness
Storage time
Temperature
Adhesive-residue limits
Customer removal process

The packaging method should be reviewed whenever the finish, part geometry, quantity, or shipping method changes.

Scratch Troubleshooting Table

Visible problem	Likely source	What to check first
Random curved scratches	Loose chips dragged across the face	Chip evacuation, trays, gloves, wiping method
Repeated mark at the same position	Fixture, jaw, locator, or toolpath contact	Fixture cleanliness and CNC path location
Fine parallel lines	Finishing tool condition or process texture	Tool wear, runout, feed, path direction
Deep local gouge	Tool re-entry, collision, hard chip, or handling impact	Program transitions and unloading process
Marks near clamping area	Jaw contamination or excessive local pressure	Jaw surface, clamp position, contact area
Scratches around edges	Deburring tool touching adjacent surfaces	Deburring method and edge access
Damage only after anodizing	Hidden pre-finish scratch or finishing transport	Pre-anodizing inspection and rack handling
Marks on several parts in the same area	Repeated fixture or tray contact	Shared contact point across the process
Damage after shipment	Part movement or failed separators	Packaging fit, vibration, and box loading
Clean surface but failed visual inspection	Undefined or inconsistent cosmetic standard	Lighting, distance, samples, and surface zones

Buyer Checklist for Cosmetic Aluminum Parts

Before requesting a quotation, provide:

3D CAD model
Controlled 2D drawing
Aluminum alloy and temper
Quantity
Cosmetic surface locations
Hidden and noncritical surfaces
Surface-finish requirement
Anodizing, blasting, polishing, painting, or plating
Approved rack-mark locations
Masked areas
Threads and precision fits
Required edge break
Appearance inspection conditions
Approved reference sample when available
Packaging and part-separation requirements
Material-certificate requirements
Dimensional inspection requirements
First-article requirements
Shipping destination

A clear cosmetic specification helps the supplier plan workholding, toolpaths, handling, finishing, inspection, and packaging before production begins.

How Rapid Efficient Supports Cosmetic Aluminum Parts

Rapid Efficient supports CNC-machined aluminum prototypes, low-volume parts, and repeat production for housings, brackets, covers, frames, plates, and other custom components.

Project support may include:

Drawing and DFM review
Cosmetic-surface identification
Workholding and process planning
CNC milling and turning
Thin-wall machining review
Toolpath and finishing-pass planning
Deburring and edge-control review
Surface-finishing coordination
Dimensional inspection
CMM reports when requested
Visual inspection against the agreed standard
Individual part protection
Packaging and international delivery coordination

Final feasibility depends on the alloy, geometry, wall thickness, tolerance, cosmetic requirement, finishing route, quantity, inspection scope, and packaging requirement.

Learn more about our CNC aluminum machining services.

After receiving complete drawings, models, quantity, finish, and inspection requirements, Rapid Efficient typically provides quotation feedback within 24 hours.

FAQ

Can CNC-machined aluminum parts be completely scratch-free?

A supplier can reduce avoidable scratches and protect defined cosmetic surfaces, but the acceptance requirement must still define what is visible, under which inspection conditions, and on which part surfaces. Absolute wording without a controlled standard often leads to disputes.

Why do chips scratch aluminum surfaces?

Aluminum chips may become trapped under tools, parts, jaws, gloves, cloths, or trays. When the chip is dragged across the relatively soft aluminum surface, it can produce a visible line or gouge.

Does anodizing hide scratches?

Usually not. Existing machining marks, scratches, polishing differences, or contamination may remain visible and can appear more obvious after anodizing.

Can Ra measurement detect all scratches?

No. Ra describes average surface roughness over a measured sampling area or length. A localized scratch may remain visually unacceptable without being represented adequately by one Ra result.

Are soft jaws enough to prevent clamp marks?

No. Soft jaws must still be correctly machined, cleaned, supported, and clamped. Chips, damaged jaws, excessive force, or part movement can still create marks.

Should aluminum parts be stacked after machining?

Cosmetic parts should normally be separated. Direct metal-to-metal contact can create scratches during internal transport, inspection, surface finishing, and shipping.

Can scratches be polished out before anodizing?

Some shallow marks may be blended through an approved polishing or surface-preparation process, but polishing can change flatness, edge definition, texture, and the final anodized appearance. The repair method must match the drawing and cosmetic standard.

What information should be included on a cosmetic-part drawing?

Identify critical visible surfaces, allowed contact areas, finish, color, rack marks, masked zones, inspection conditions, edge requirements, packaging, and any approved reference sample.

Request a Cosmetic Aluminum Part Review

Send Rapid Efficient your:

2D drawing
3D model
Aluminum grade
Quantity
Cosmetic-surface requirements
Surface finish
Anodizing or coating requirements
Inspection standard
Packaging expectations

We can review potential scratch risks across machining, workholding, deburring, cleaning, finishing, inspection, handling, and delivery before production begins.
